Before you source rubber dispersion kneader in Chennai equipment, define how every finished batch will leave the chamber and reach the next process. The receiving vessel, transfer route, downstream availability and controls must work together. A suitable kneader can still create production delays if discharge and batch handling are left outside the buying scope.
Source rubber dispersion kneader in Chennai: start at discharge
A dispersion kneader mixes a batch within an enclosed chamber. The offered machine’s discharge arrangement must match the receiving process. Confirm the actual model rather than assuming that all kneaders discharge in the same direction or use identical movement. Ask for the arrangement drawing and operating instructions.
This guide addresses the transfer interface after mixing. It does not establish a universal batch weight, discharge temperature, cycle time or production capacity. Your compound specialist and equipment supplier must agree those inputs. A clear enquiry can expose missing transfer equipment before delivery, when changes become harder to manage.
Map the batch from chamber to next process
Draw the route through discharge, receiving, transfer, any permitted holding stage and the downstream mill or other process. Mark material identity, operator tasks and waiting points. Note where the compound can contact surfaces, lose identification or be mixed with another batch. Include rejected material handling in the drawing.

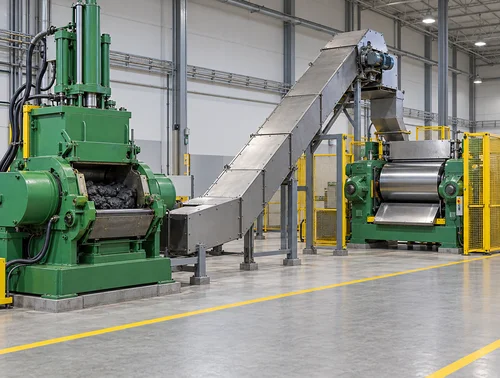

Santosh Rubber Machinery describes front-discharge arrangements and an example combining a kneader, skip conveyor and two-roll mill in its dispersion kneader information. This illustrates that the surrounding line matters. It does not prove that the same configuration will suit your compound, building or production plan.
Define the receiving equipment

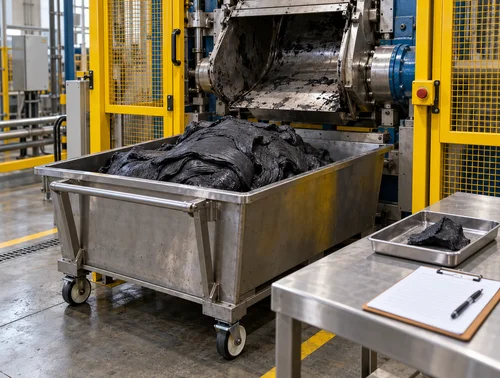

Specify the receiving vessel’s duty, position, material compatibility, cleaning method and identification process. Confirm its rated load and movement requirements with the responsible supplier. Do not use a convenient trolley without verifying that it is suitable for the actual batch and environment. Document who supplies and approves it.
Compare transfer options fairly
| Transfer arrangement | Potential advantage | Limitation to resolve |
|---|---|---|
| Receiving trolley | Flexible route for a defined batch | Requires handling space, identification and suitable manual tasks |
| Skip conveyor | Can connect machines with a planned transfer sequence | Needs guarding, controls and cleaning access |
| Direct integrated transfer | Can reduce intermediate handling | Depends strongly on compatible downstream readiness |
| Permitted buffer stage | May separate machine timing | Compound holding conditions must be approved |
When you source rubber dispersion kneader in Chennai proposals, compare the complete transfer system rather than the mixer price alone. Ask for included foundations, supports, vessels, guards, sensors, cables, installation and trial support. Record exclusions beside each interface so responsibilities cannot be mistaken later.
Check whether downstream equipment is ready
Record the receiving machine’s actual work sequence during a representative trial. A mixing cycle cannot be evaluated in isolation if the next machine is occupied. Establish what should happen when downstream equipment stops or cannot accept a batch. Have the permitted response reviewed with the supplier and compound specialist.
Do not invent an acceptable waiting time. Material behaviour and process requirements differ. Put the agreed hold limits and disposition procedure into the trial brief where applicable. If no safe or quality-preserving holding arrangement exists, treat downstream availability as an essential condition of the line design.
Witness transfer under representative conditions
- Confirm machine identities and the agreed transfer layout.
- Review guarded areas and safe access with competent personnel.
- Identify the compound and representative batch conditions.
- Observe chamber discharge into the intended receiver.
- Record retained material, spillage and additional handling.
- Track the batch to its downstream process.
- Observe the approved response to a planned interruption.
- Document results, exceptions and correction responsibility.
Review access, isolation and unexpected movement across the whole installation. The US OSHA machine-guarding overview is general background; applicable local requirements, risk assessment and manufacturer instructions govern the actual work. Never demonstrate a blockage response by improvising around guards.
Compare evidence before acceptance
| Evidence supplied | Buying advantage | Unresolved limitation |
|---|---|---|
| Arrangement drawing | Shows discharge direction and transfer interfaces | Must be checked against the actual building |
| Witnessed material transfer | Tests the proposed route with stated material | One batch may not cover other compound duties |
| Interrupted-sequence review | Documents the intended recovery responsibility | Requires an approved procedure and competent assessment |
| Cleaning and identification records | Supports controlled batch handling | Depends on consistent use after handover |
Preserve the handover information
Assign a receiving owner for each handover point. That person should know whether the batch has been released, held or rejected. Use a visible batch identifier that survives the transfer and links to the mixing record. If a vessel contains residual material, record its identity and approved disposition before another batch arrives. These practical records help quality teams investigate a problem without guessing which material entered the next process.
Request the line drawing, equipment identities, rated handling duties, operating instructions and interface control description. List accepted trial conditions and unresolved deviations. Ask which supplier supports each component. Do not assume that the kneader seller also services the receiving vessel, conveyor or downstream controls.
Read the usable batch-size guide and compound changeover guide for complementary decisions. The generated images in this article are illustrative and cannot demonstrate machine condition, performance or availability.
To read More about Rubber Making Machine Visit Here:
https://www.indiamart.com/vatsntecnic/profile.html
Buyer FAQs
Does the kneader quotation include transfer equipment?
Do not assume it. List receivers, conveyors, controls and installation responsibilities separately.
Is a trolley suitable for every compound?
No. Verify load, material compatibility, cleaning and handling requirements for your duty.
Can a conveyor remove every bottleneck?
No. The receiving process must also be ready and suitably matched.
Should discharge direction appear in the enquiry?
Yes. Confirm the model’s arrangement against the intended line layout.
How long may a mixed batch wait?
Use limits approved for your compound and process; no universal waiting time is appropriate.
What should a witness test record?
Record material identity, transfer sequence, interruptions, handling tasks, retained material and agreed acceptance results.
Should cleaning be reviewed during purchase?
Yes. Check the complete transfer path and the approved cleaning access.
What should Vatsn Tecnic receive?
Send your compound duty, downstream process, building layout and required transfer-trial brief.
Key takeaways and next step
Match discharge, receiving equipment and downstream timing before purchase. To source rubber dispersion kneader in Chennai options, share a complete batch-transfer brief with Vatsn Tecnic and request clearly assigned supply, testing and handover responsibilities.
