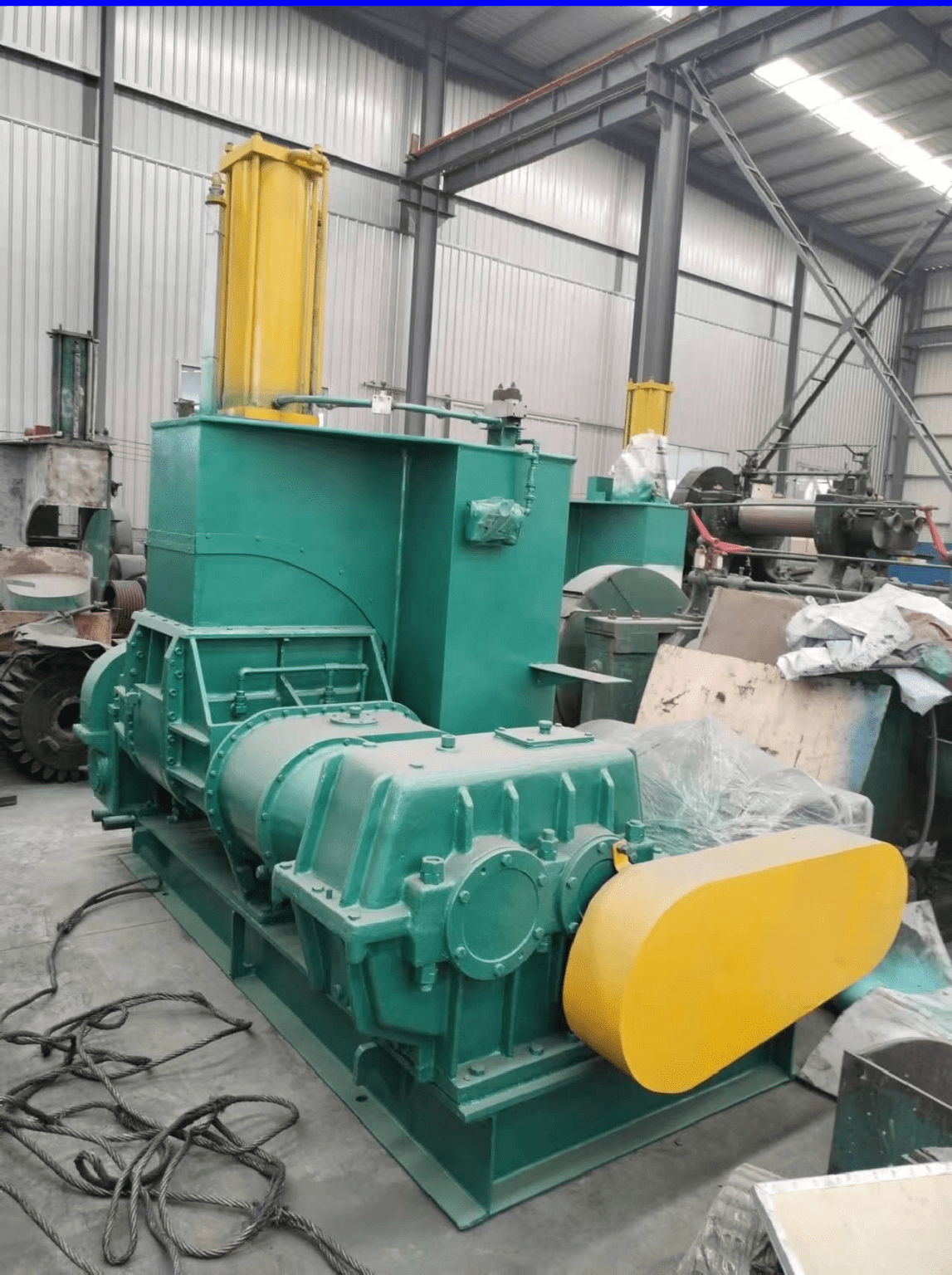

Buy |Sell Used Second Hand Dispersion Kneader 55 L
Buy |Sell Used Second Hand Dispersion Kneader 55 L
Net chamber volume:- 125L
Working volume:- 55L
Front/Back rotor friction ratio:- 1:1.22
Front rotor rotation speed:- 30rpm
Rear rotor rotation speed:- 24.5rpm
Driving Motor Power:- 75KW
Driving motor rotation speed:- 985rpm
Turn angle:- 140°
Length*Width*Height(mm):- 3250*1900*2950
Weight(kg):- 7600
Rotor material:- No.45 steel(S45C), Surfacing cemented carbide, Rotor entire surface is plated with hard chromium with good abrasion
resistance.
Categories: DISPERSION KNEADER MIXER, RUBBER PROCESSING MACHINERY
Tags: Plc Control Rubber Dispersion Kneader, Rubber and PVC EPDM kneader compound mixing machine, Rubber Compound Dispersion Kneader, Rubber compound mixing Kneader Mixer, Rubber Internal Kneader Mixer for compounding, Rubber Kneader Mixer Bucket elevator, Supercooling Dispersion compund kneader mixer machine
