Rubber Internal Kneader Mixer for compounding
Buy | Sell Used Dispersion Kneader 35 Ltr

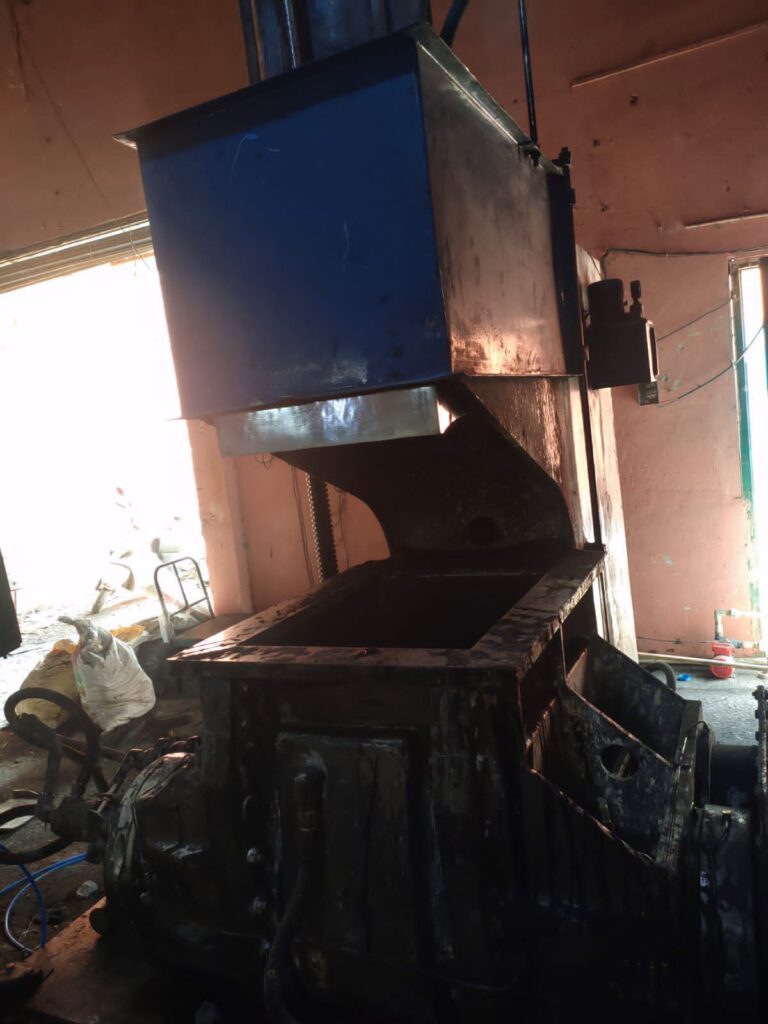

Buy |Sell Used Dispersion Kneader 35 L
Buy |Sell Used Dispersion Kneader 35 LTechnical parameter:-1. Main machine part 1 set2. Control system 1 setWorking capacity of mixing:- 35LThe total volume of the mixing chamber:- 75LMain motor power:- 55KWRotor speed(Front/Rear):- 32/24.5r/minMixing chamber tilting angle:-140Press material air plunger inner diameter:- 200mmTilting motor power:- 1.5KWThe pressure of compressed air:- 0.6-0.8MPaThe pressure of cooling water:- 0.2-0.4MPaThe pressure of steam:- 0.5-0.8MPaOverall dimensions ( L×W×H):- 3200×1900×2950mm
Buy |Sell Used Second Hand Dispersion Kneader 55 L
Buy |Sell Used Second Hand Dispersion Kneader 55 LNet chamber volume:- 125L
Working volume:- 55L
Front/Back rotor friction ratio:- 1:1.22
Front rotor rotation speed:- 30rpm
Rear rotor rotation speed:- 24.5rpm
Driving Motor Power:- 75KW
Driving motor rotation speed:- 985rpm
Turn angle:- 140°
Length*Width*Height(mm):- 3250*1900*2950
Weight(kg):- 7600

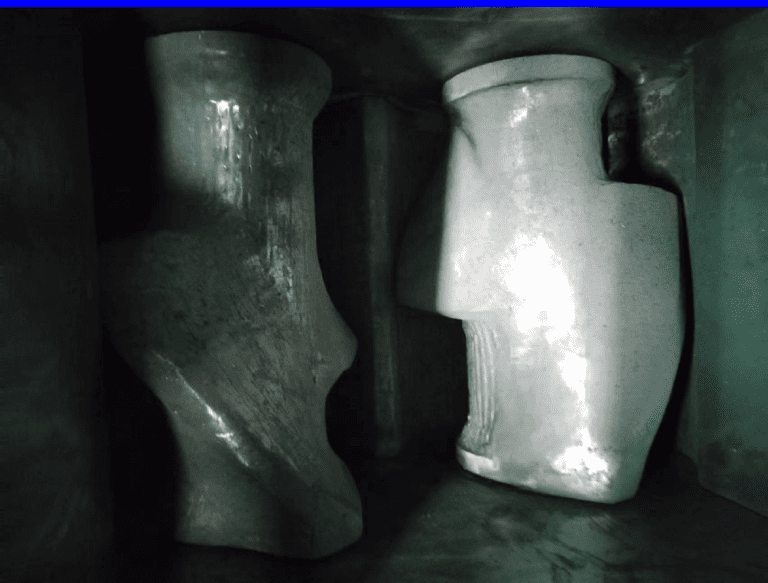

Rotor material:- No.45 steel(S45C), Surfacing cemented carbide, Rotor entire surface is plated with hard chromium with good abrasion
resistance.
