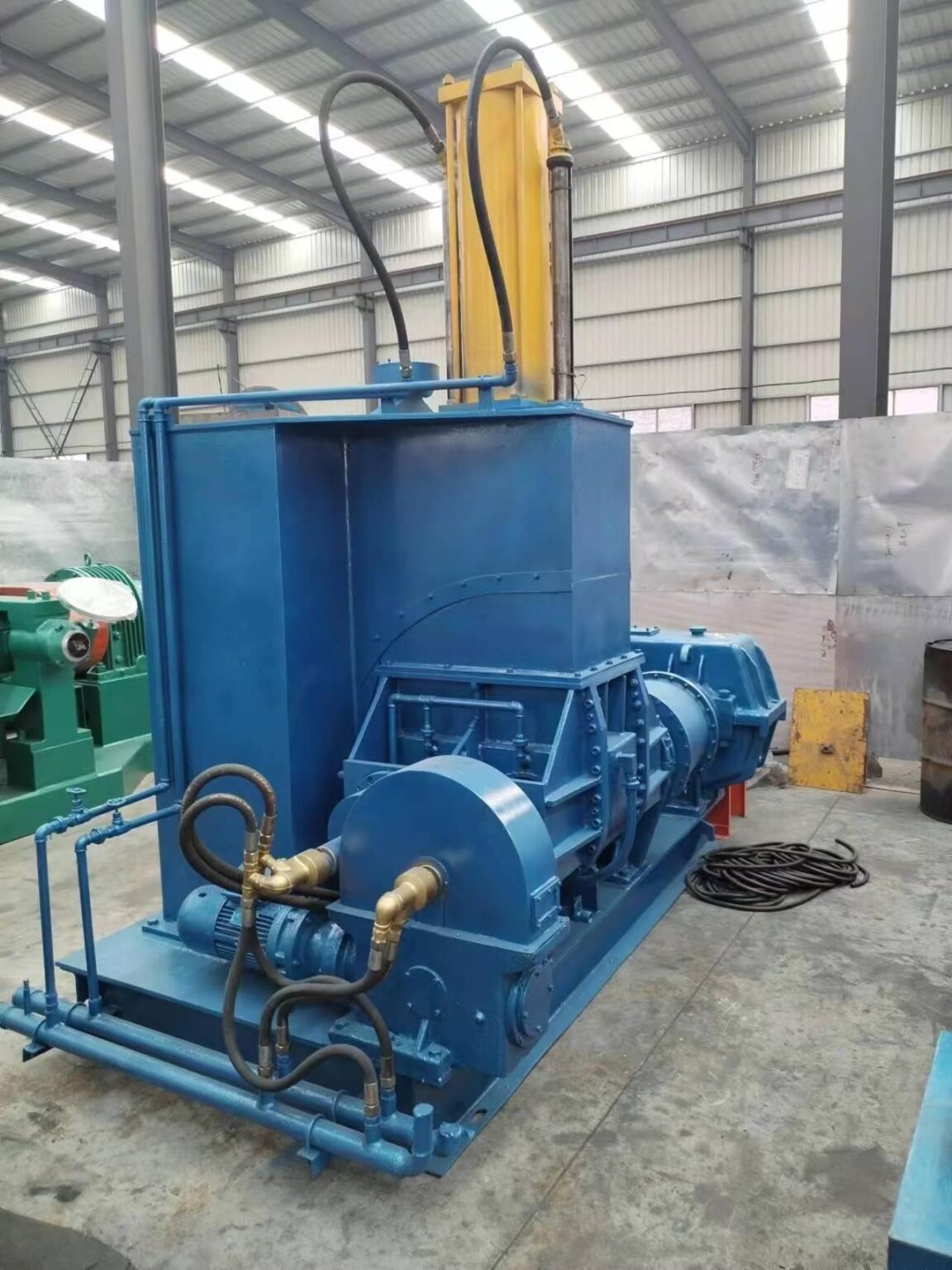

Buy |Sell Used Dispersion Kneader 35 L
Buy |Sell Used Dispersion Kneader 35 L
Technical parameter:-
1. Main machine part 1 set
2. Control system 1 set
Working capacity of mixing:- 35L
The total volume of the mixing chamber:- 75L
Main motor power:- 55KW
Rotor speed(Front/Rear):- 32/24.5r/min
Mixing chamber tilting angle:-140
Press material air plunger inner diameter:- 200mm
Tilting motor power:- 1.5KW
The pressure of compressed air:- 0.6-0.8MPa
The pressure of cooling water:- 0.2-0.4MPa
The pressure of steam:- 0.5-0.8MPa
Overall dimensions ( L×W×H):- 3200×1900×2950mm
Categories: DISPERSION KNEADER MIXER, RUBBER PROCESSING MACHINERY
Tags: Plc Control Rubber Dispersion Kneader, Rubber and PVC EPDM kneader compound mixing machine, Rubber compound mixing Kneader Mixer, Rubber Internal Kneader Mixer for compounding, Supercooling Dispersion compund kneader mixer machine
