Used 800×1640 Rubber Rotocure Machine – Best Offer
-

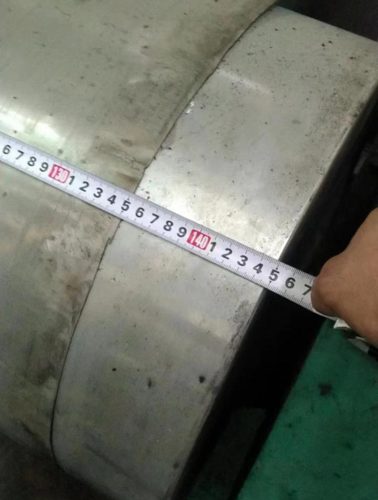

Size: 800mm x 1640mm
-
Condition: Used, well-maintained
-
Application: Rubber sheet curing, conveyor belts, mats
-
Drive System: Smooth and stable operation
-

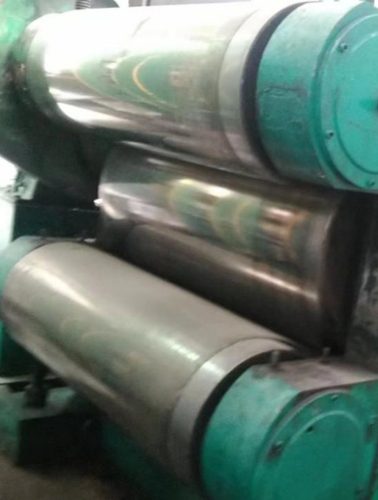

Rollers: Precision aligned for consistent thickness
-
Cooling & Heating System: Fully functional
-
Ready to Dispatch – Immediate availability

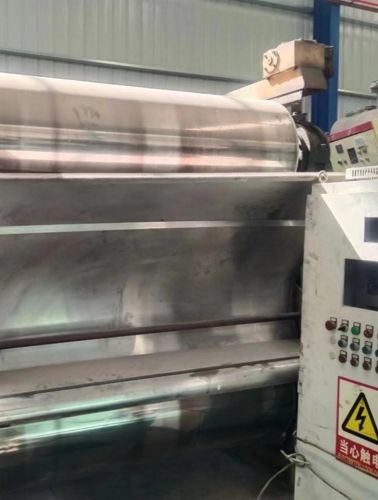

Used 800×1640 Rubber Rotocure Machine – Excellent Working Condition | Best Offer Available
We are pleased to offer a Used Rubber Rotocure Machine (800×1640 mm) that is not only in excellent working condition but also fully refurbished and tested to deliver reliable performance. To begin with, this heavy-duty continuous vulcanizing machine is specifically engineered for the production of high-quality rubber sheets, conveyor belts, floor mats, and other industrial rubber components that demand uniform thickness and superior surface finish.
Moreover, the rotocure system is highly suitable for long-run, continuous rubber sheet processing. Thanks to its precision-calibrated heating cylinder with temperature control and a belt drive system, the machine ensures consistent and even curing throughout the process. With a width of 800mm and a length capacity of 1640mm, it effectively caters to medium to large-scale manufacturing requirements.
Furthermore, all mechanical parts have been carefully inspected and thoroughly reconditioned for optimal performance. As a result, this machine stands out as a cost-effective solution for businesses aiming to scale up production without incurring the high expenses associated with brand-new equipment.
Key Features:
-
Size: 800mm x 1640mm
-
Refurbished & Ready to Use
-
Precision Sheet Curing
-
Energy Efficient & Operator Friendly
-
Ideal for Industrial Rubber Products
| Model | VAT-710X700 | VAT-710X1450 | VAT-1000X1600 | VAT-1250X1800 | VAT-1500X2400 | VAT-2000X3200 | VAT-2500X4200 | |
| Drum diameter (mm) | 710 | 710 | 1000 | 1250 | 1500 | 2000 | 2500 | |
| Max. Product width (mm) | 500 | 1150 | 1300 | 1500 | 2100 | 2900 | 3800 | |
| Product thickness (mm) | 0.5-5 | 0.5-5 | 1-8 | 1-8 | 1-10 | 1-10 | 1-10 | |
| Total pulling force of steel belt (kn) | 300 | 380 | 900 | 1100 | 1500 | 3300 | 5000 | |
| Drum liner speed (m/min) | 0.2-2 | 0.2-2 | 0.2-2 | 0.2-2 | 0.2-3 | 0.2-3 | 0.2-3 | |
| Curing pressure (mpa) | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | |
| Steam pressure (mpa) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Main motor power (kw) | 2.2 | 3 | 3 | 3 | 5.5 | 7.5 | 11 | |
| Winding power (kw) | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | |
|
Overall dimension (mm)
|
(L) | 2630 | 2630 | 3300 | 5790 | 6300 | 7200 | 8800 |
| (W) | 2440 | 3190 | 3300 | 4870 | 4900 | 7100 | 8400 | |
| (H) | 2730 | 2730 | 3500 | 4970 | 5100 | 5800 | 6200 | |
| Weight (t) | 15 | 20 | 25 | 28 | 32 | 100 | 200 | |
📞 For pricing and inspection, contact us today!
We provide guidance, transport assistance, and post-sale support.
✅ Limited Stock – First Come, First Served.
