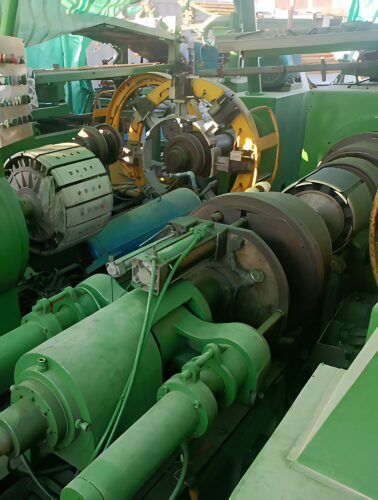

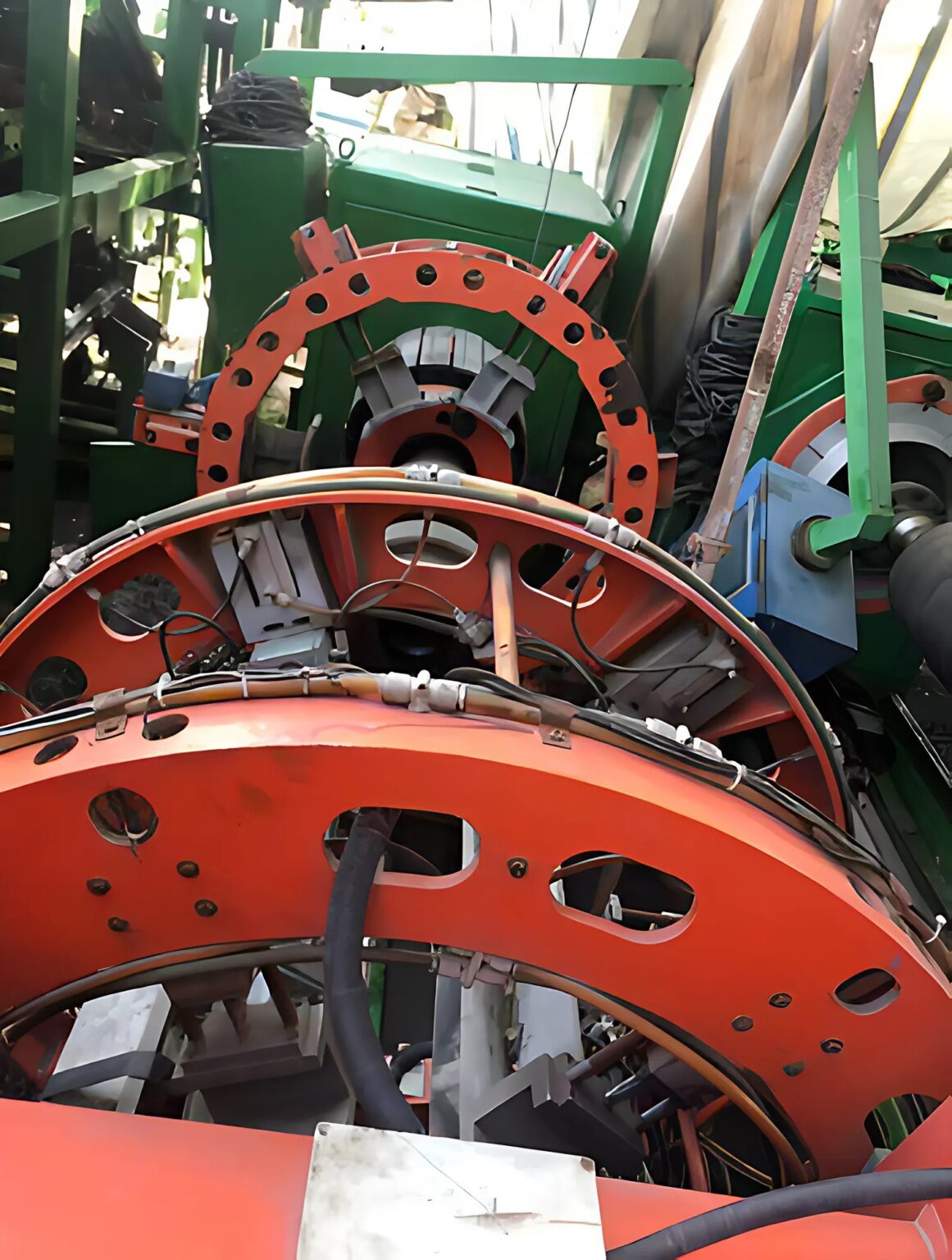

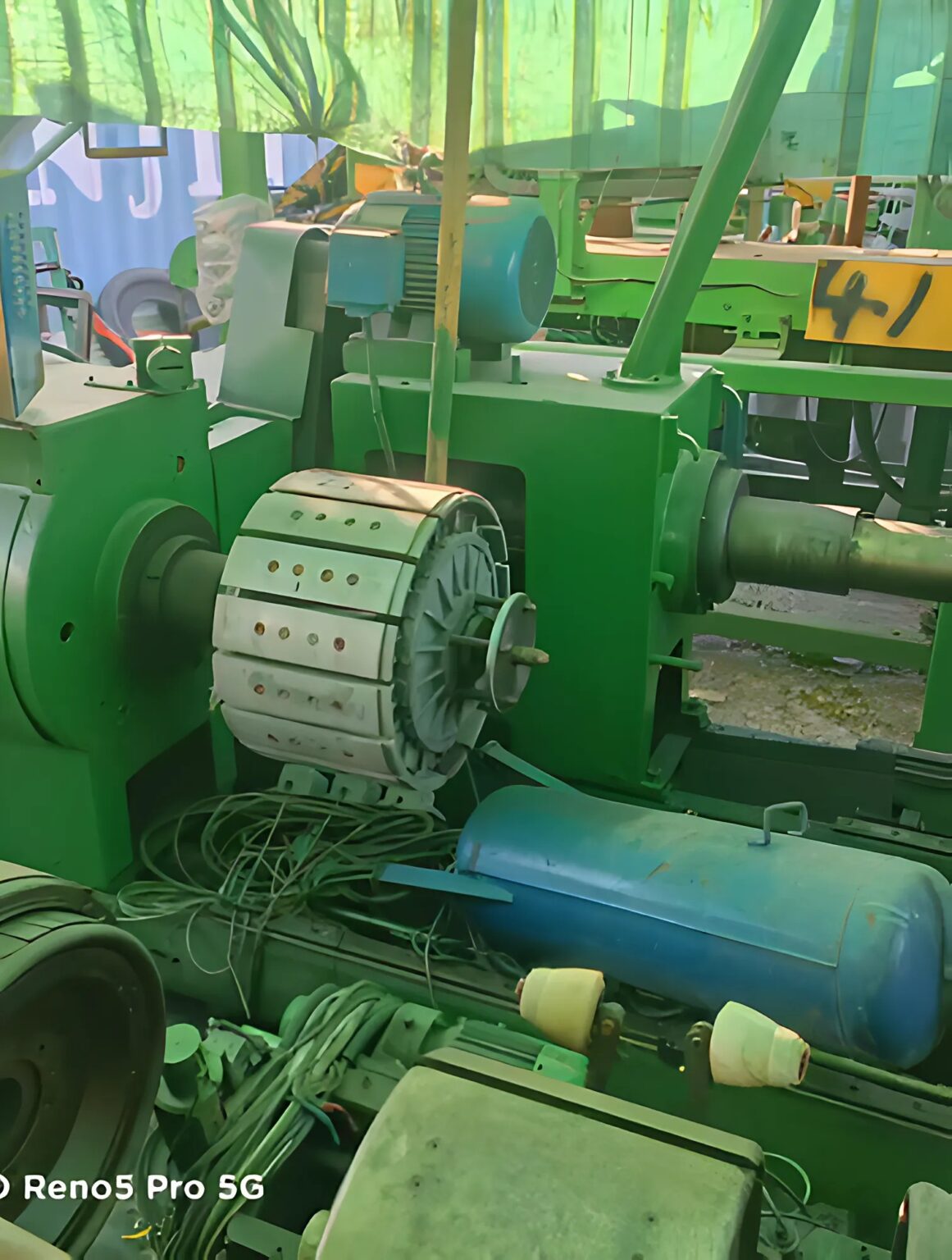

Reused Uni-Stage Automated Tire Building Machine 14”–18” TBM
| Model / Specification | PR2-1215 | MC2-1519 |
| Applicable Tyre | PCR (steel, fabric) | MC (fabric) |
| Bead Diameter | 12″ ~ 15″ | 15″ ~ 19″ s |
|
Belt Drum Dia
|
Ø445.6 ~ Ø 573 | Ø525 ~ Ø 652.5 |
| Ø573 ~ Ø700 | Ø652.5 ~ Ø779.8 | |
| Transfer Ring Inner Dia. Range | Ø450 ~ Ø 700 | Ø525 ~ Ø 870 |
| Belt Drum Width | 300mm | 300mm |
| Height of Drum center above Floor | 1060mm | 1060mm |
| Width of Transfer Ring Segment | 200mm | 200mm |
|
Shaping Drum Range
|
Min190 ~ MAX560mm (Shaping Drum) | Min190 ~ MAX560mm (Shaping Drum) |
| Min100 ~ MAX560mm (Shoulder Ring) | Min100 ~ MAX560mm (Shoulder Ring) | |
| Feeding Mechanism | Cart Type / Hanging Type | Cart Type / Hanging Type |
| Width of JLB (slit cap ply) | 8mm to 12mm | 8mm to 12mm |
| Tread Width Range | 300mm | 300mm |
| Tread Length MAX. | 2500mm | 2500mm |
| Electronic Control System | Servo motor CONTROL Manual / Auto | Servo motor CONTROL Manual / Auto |
| Building rate (approximate) | 90 sec / pc | 90 sec / pc |
Reused Uni-Stage Automated Tire Building Machine 14”–18” TBM – Best Choice for Tire Manufacturing
Vatsn Tecnic deals in second-hand Uni-Stage Automated Tire Building Machines (TBM) 14″–18″ throughout major Indian cities such as Delhi, Mumbai, Chennai, and Bangalore. The tire-building machine is specifically suited for manufacturers needing efficient, high-quality tire production.
Our tire-making machines are stringently quality-checked and serviced to ensure that they run like new. We offer total support, including maintenance, manpower, business consultancy, and annual maintenance contracts (AMC).
Uses and Benefits of the Uni-Stage Automated Tire Building Machine 14”–18” TBM
A tire-building machine is an important part of tire production. It combines various tire parts, including the inner liner, sidewalls, and treads, into a consistent form. This is important for guaranteeing durability, safety, and performance.
Key Benefits:
- Cost-Effective Production—Save money with a used tire-making machine without sacrificing quality.
- High Efficiency—Automates the process, minimizing manual labor and maximizing output.
- Consistent Quality—Provides consistency in tire structure, enhancing performance and durability.
- Versatility—Versatile for use in the production of tires between 14 and 18″ sizes.
- Eco-Friendly—Recycling a tire-building machine promotes sustainability and minimizes waste.
Key Features of the Uni-Stage Automated Tire Building Machine 14”–18” TBM
A high-performance tire-building machine should possess precision, durability, and automation. Our products comply with industry specifications and provide the best features.
- Fully Automated System—Minimizes manual labor and boosts production speed.
- High Precision Mechanism—Maintains accurate alignment of tire components.
- User-Friendly Interface—Simple to operate with sophisticated control systems.
- Robust Build Quality—Built to last with minimum wear and tear for longer usage.
- Energy Efficient—Less power consumption, saving on operational expenses.
Additional Services by Vatsn Tecnic
We do not just supply tire-building machines at Vatsn Tecnic. We offer complete solutions to enable tire manufacturing companies to function smoothly.
- Servicing and Maintenance – Periodic servicing increases the lifespan of your tire-making machine.
- Manpower Supply—Technicians at hand for machine operation and maintenance.
- Annual Maintenance Contracts (AMC)—Hassle-free maintenance with periodic check-ups.
- Business Consultancy—Professional guidance to enhance your production process and efficiency.
Why Choose Vatsn Tecnic for Secondhand Tire Building Machines?
Getting a good tire-building machine manufacturer is not an easy task. Vatsn Tecnic will provide you with the best equipment at competitive prices.
Reasons to Trust Vatsn Tecnic:
- Trusted Supplier—We have years of experience in the secondhand machinery market.
- Quality Assurance—Each tire-building machine is tested rigorously.
- Affordable Pricing—Purchase high-quality machines at a fraction of the price of new machines.
- Nationwide Service—We provide service in big Indian cities like Delhi, Mumbai, Chennai, and Bangalore.
- End-to-End Support—From installation to maintenance, we provide complete sup
Conclusion
A Uni-Stage Automated Tire Building Machine 14″–18″ TBM is crucial for tire producers to enhance efficiency while ensuring quality. Vatsn Tecnic offers the best tire-making machines along with total support services.
Searching for a good tire-building machine manufacturer? Contact Vatsn Tecnic now and receive the best quotations for secondhand tire-building machines!
For More Information Visit Here
