Compression Molding
Reconditioned 270-Litre Tangential Mixer with Hydraulic Ram
| Model | VAT(M) – 50/ 40 | VAT(M) – 75/ 40 | VAT(M) – 110/ 40 | VAT(M) – 140/ 40 | VAT(M) – 160/ 40 | VAT(M) – 190/ 40 | VAT(M) – 250/ 40 | VAT(M) – 270/ 40 | |
| Total volume of mixing chamber (L) | 50 | 75 | 110 | 140 | 160 | 190 | 250 | 270 | |
| Working volume of mixing chamber (L) | 35 | 50 | 80 | 100 | 120 | 140 | 190 | 205 | |
| Speed of rear rotor (r/min) | 40 | 40(6-60) | 40(4-40) | 40 | 40(6-60) | 40(6-60) | 20/40(4-40,6-60) | 20/40(4-40,6-60) | |
| Rotor speed ratio | 1.167 | 1.185 | 1.156 | 1.15 | 1:1.143/1:1 | 1:1.143/1:1 | 1.2:1/1:1 | 1:1.7/1:1 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (KW) | 75 | 160/315 | 220/400 | 315 | 355/500/750 | 800/1100 | 1120/1250/1500 | 1100/1250/1500 | |
Overall dimension (mm) | (L) | 5095 | 5600 | 5690 | 6525 | 6760 | 7000 | 7500 | 8690 |
| (W) | 1950 | 2300 | 2745 | 2800 | 2900 | 3330 | 4305 | 4325 | |
| (H) | 3180 | 4600 | 4670 | 5280 | 5280 | 6200 | 5768 | 6140 | |
| Weight (T) | 11 | 16..8 | 28 | 33 | 38 | 46 | 48.5 | 51 | |
Reconditioned 270-Litre Tangential Mixer with Hydraulic Ram | Tangential Rubber Mixer
Vatsn Tecnic is a trader of used and brand new INTERMIX-BANBURY MIXER machines with various capacities. We supply top-class tangential rubber mixers in Delhi, Mumbai, Chennai, Bangalore, and other industrial hubs. Our activities include the buying, selling, repairing, and maintenance of hydraulic ram tangential kneader machines. We also offer annual maintenance contracts, manpower support, and industrial rubber mixing business consultancy.
Optimize Rubber Mixing with a Used Tangential Kneader Mixer

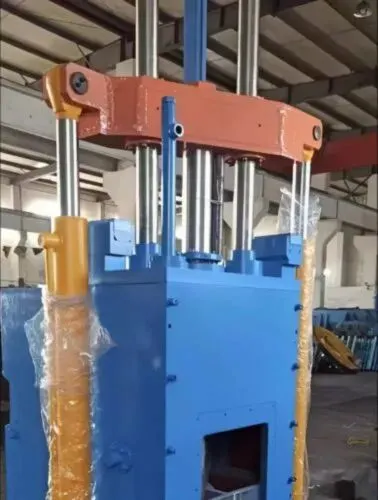

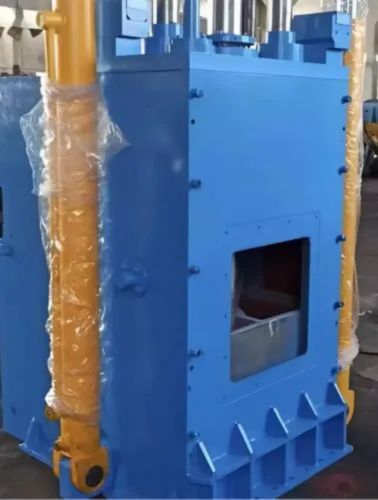

The reconditioned 270-liter hydraulic ram tangential mixer is equipped for optimum rubber processing. It offers precise mixing, consistency, and improved blending of materials.
Why This Mixer?
- Enhances rubber compound homogeneity to high quality.
- Facilitates mass production with high-capacity mixing.
- Reduces mixing time effectively with efficient tangential rotor technology.
- Ensures controlled temperature and pressure regulation.
- Boosts productivity in industrial rubber production.
Key Features of the Secondhand Industrial Hydraulic Ram Tangential Kneader Machine
This 270-liter tangential rubber kneader has strong and precise rubber kneading. It is used extensively in the tire, rubber, and polymer industries.
Technical Highlights:
- Balanced material compression through a hydraulic ram system.
- Shear and dispersion through tangential rotor design.
- Heavy-duty frame for constant industrial use.
- Temperature-controlled mixing chamber for accurate processing.

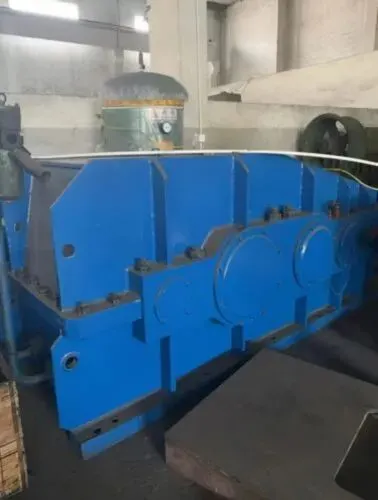

- Enhanced motor and gearbox system for constant performance.
Complete Support for Tangential Kneader Machines by Vatsn Tecnic
We provide used and new hydraulic ram tangential kneader machine end-to-end solutions at Vatsn Tecnic. Our operations are both effective and flawless.
Our Service Offerings:
- Dedicated refurbishment maintenance of tangential rubber mixers.
- Manpower services for machine operations and handling.
- Annual maintenance agreement to ensure the highest uptime.
- Industrial consultancy service to enhance the rubber mixing processes.
What Makes Vatsn Tecnic the Right Choice for Rubber Mixing Machines?
Extensive Industry Experience
- Our experts have extensive industry experience in tangential rubber mixers and INTERMIX-BANBURY MIXER machines.
Cost-Effective Machinery
- We provide cost-effective, high-quality, reconditioned hydraulic ram tangential mixers for industrial use.
Dedicated After-Sales Support
- We offer machine servicing, maintenance, and manpower support for easy production.
Nationwide Reach
- We supply second-hand and new tangential kneader mixers in Delhi, Mumbai, Chennai, Bangalore, and other big cities.
Get the Best Reconditioned 270-Litre Tangential Mixer at Vatsn Tecnic!
Looking for new or used tangential rubber mixers with hydraulic press units? Vatsn Tecnic provides the best rubber kneader machines with expert guidance. Contact us today!
