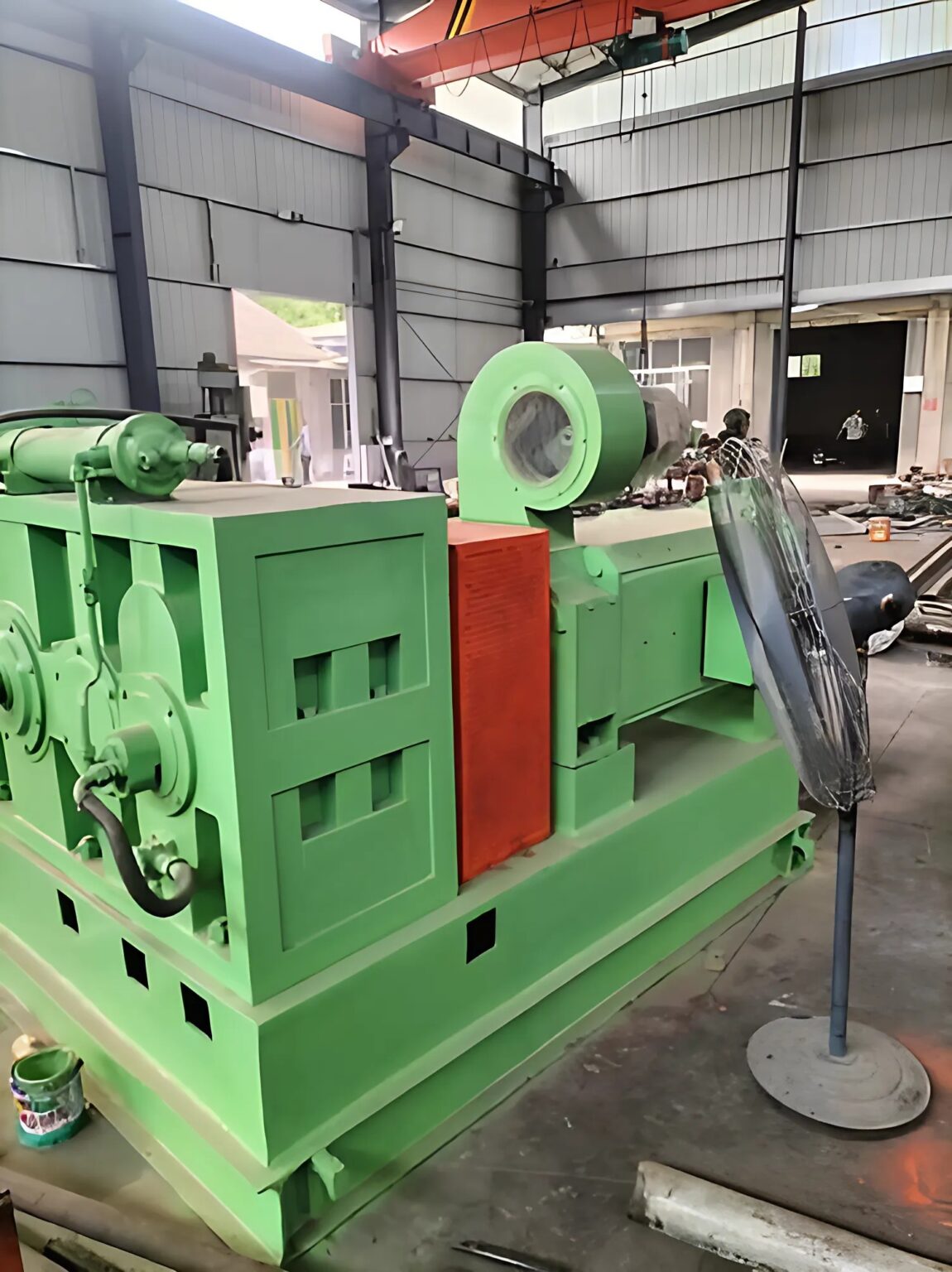

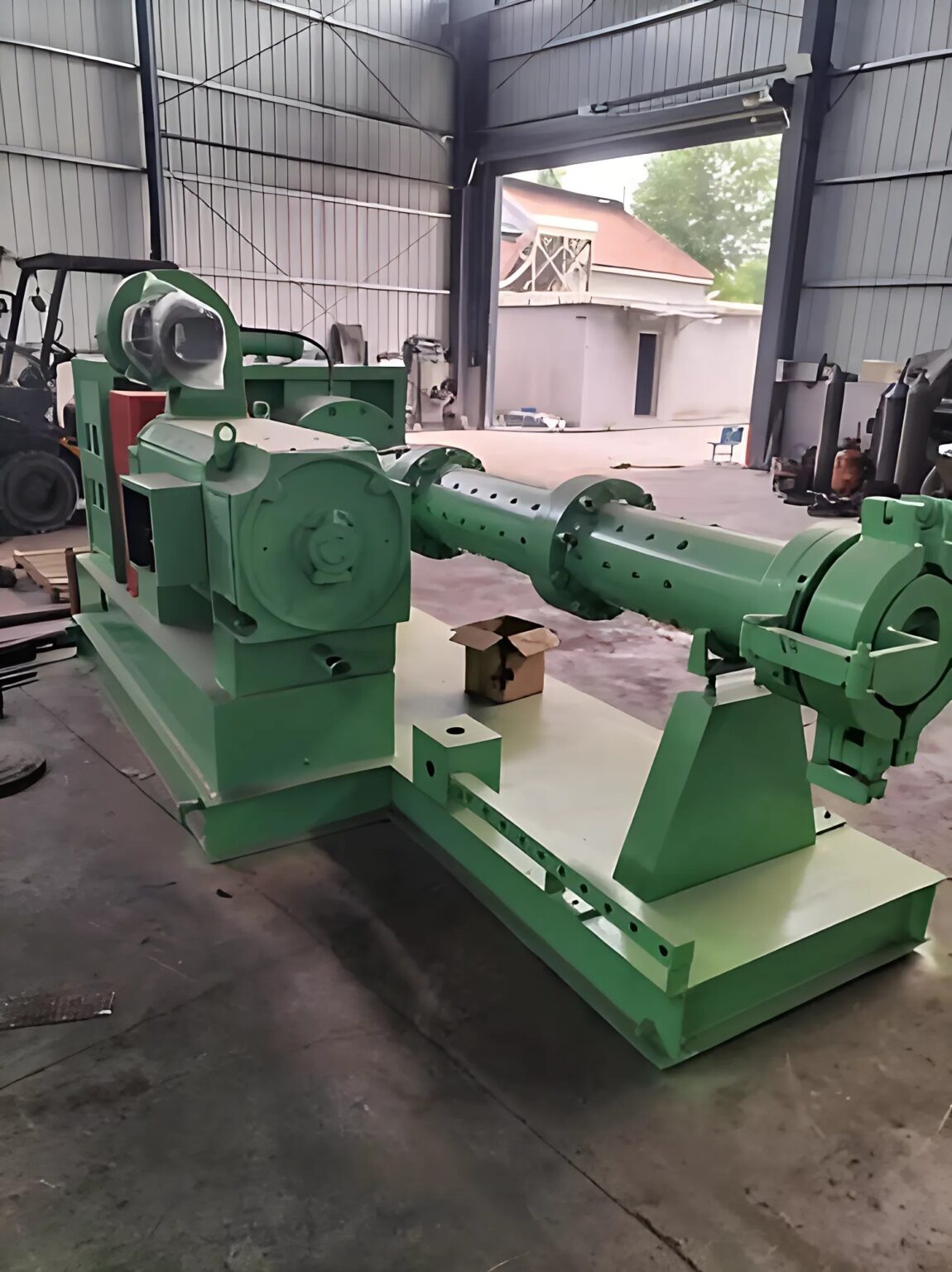

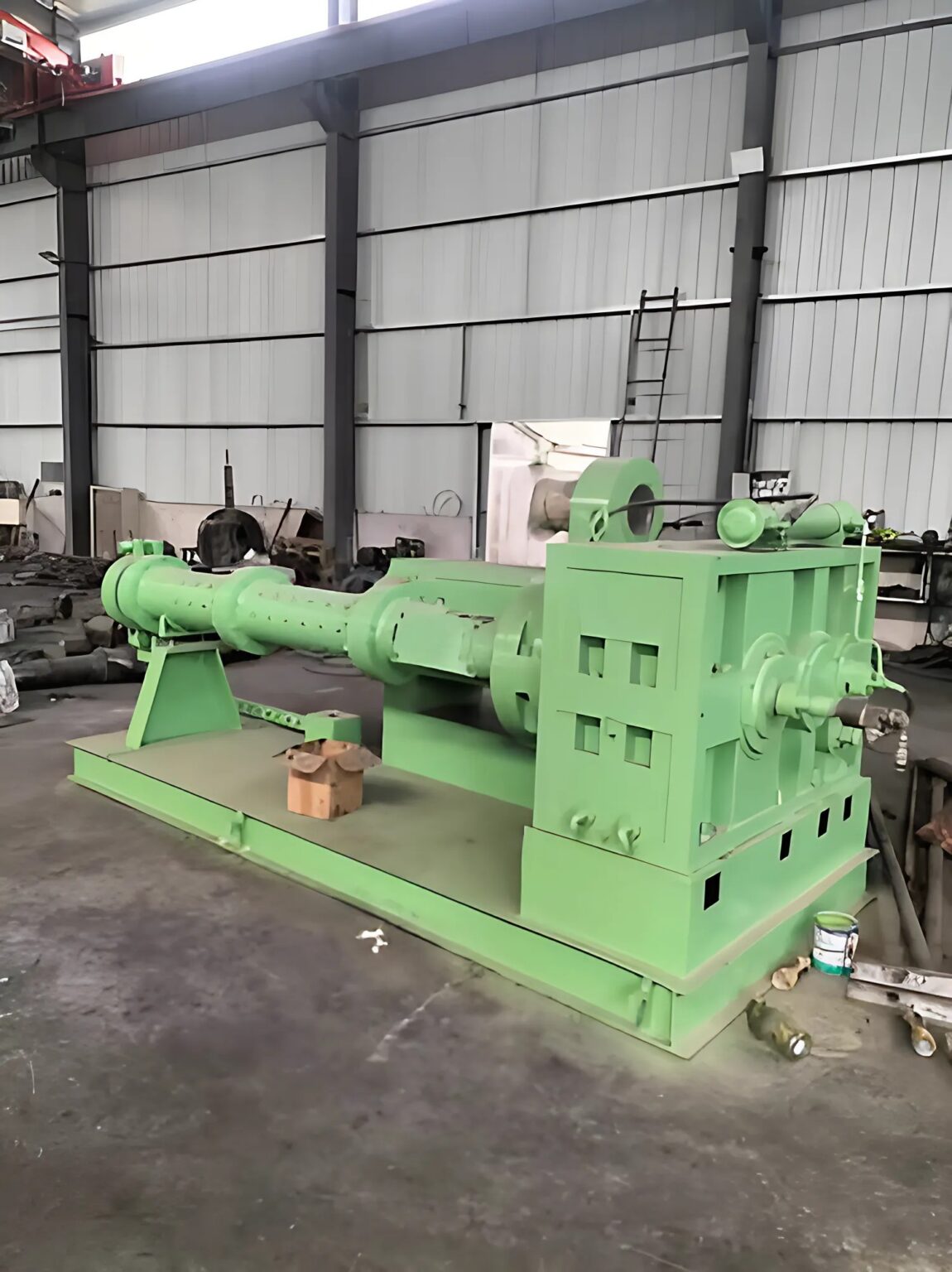

Pre-owned 150-Pin Cold Feed Extruder With Panel & TCU
| Model | VAT- 90 X 14D | VAT- 120 X 14D | VAT- 150 X 16D | VAT- 200 X 12D | VAT- 200 X 16D | VAT- 250 X 12D | VAT- 250 X 16D | |
| Screw diameter (mm) | 90 | 120 | 150 | 200 | 200 | 250 | 250 | |
| Screw L/ D ratio | 14/1 | 14/1 | 16/1 | 16/1 | 16/1 | 16/1 | 16/1 | |
| Max.Screw Speed (r/min) | 60 | 50 | 43 | 33 | 33 | 26 | 26 | |
| Feeding hole size (mm) | 120×80 | 160×110 | 200×165 | 260×152 | 260×152 | 340×190 | 340×190 | |
| Row quantity of pin | 8 | 10 | 10 | 8 | 12 | 10 | 12 | |
| Pin quantity of each row | 6 | 6 | 8 | 10 | 10 | 12 | 12 | |
| Motor model (kw) | Z4-180-41 | Z4-225-11 | Z4-250-11 | Z4-280-32 | Z4-315-12 | Z4-315-42 | Z4-355-12 | |
| Main motor Power (kw) | 55 | 110 | 220 | 315 | 355 | 400 | 450 | |
| Hot water circulation section | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| Total power of hot water circulating heating (kw) | 32 | 32 | 42 | 42 | 54 | 48 | 54 | |
| Max.Production capacity (kg/h) | 360 | 800 | 1500 | 2600 | 2600 | 3600 | 3600 | |
Overall dimension(mm) | (L) | 2300 | 3250 | 3800 | 5030 | 5900 | 5400 | 6077 |
| (W) | 1060 | 1250 | 1590 | 1950 | 1950 | 2400 | 2400 | |
| (H) | 1450 | 1650 | 1700 | 1850 | 1850 | 1920 | 1920 | |
| Weight (t) | 3.2 | 5.7 | 7.2 | 15 | 15 | 18 | 21 | |
The Pre-owned 150-pin cold Feed Extruder With Panel & TCU is an advanced and reliable machinery solution for precision extrusion processes in the rubber and plastic industries. This robust machine features a user-friendly panel and a Temperature Control Unit (TCU) to ensure optimal performance and quality output. It is ideal for manufacturers seeking cost-effective yet efficient extrusion solutions.
Key Features –
i) High Efficiency: Designed to deliver consistent and high-quality extrusion, minimizing material wastage.
ii) User-Friendly Panel: Easy-to-navigate control panel for precise adjustments and monitoring of the extrusion process.
iii) Temperature Control Unit (TCU): Ensures stable and accurate temperature management for optimal material properties.
iv) Durability: Built with high-quality materials to withstand rigorous industrial use, ensuring long-term reliability.
v) Versatility: Suitable for various extrusion applications in the rubber and plastic sectors.
Uses of 150-Pin Cold Feed Extruder With Panel & TCU –
- Rubber Extrusion: Ideal for manufacturing rubber profiles, hoses, and seals.
- Plastic Extrusion: Perfect for producing plastic profiles, pipes, and sheets.
- Automotive Industry: Used for creating components such as gaskets, seals, and hoses.
- Construction Industry: Suitable for making weather stripping, insulation, and other construction materials.
- Medical Equipment: Used to produceRubber Extrusion Machine India medical tubing and other precision components.
Why Choose Vatsn Tecnic?
i) Trusted Supplier: Vatsn Tecnic is renowned for dealing in secondhand 150 Pin Cold Feed Extruders with Panel & TCU.
ii) Wide Coverage: Operating in major Indian cities including Delhi, Mumbai, Chennai, and Bangalore.
iii) Comprehensive Services: Offering servicing, maintenance, manpower, annual maintenance contracts, and consultancy.
iv) Expertise: Backed by a team of experienced professionals dedicated to ensuring customer satisfaction and machinery performance.
v) Cost-Effective Solutions: Providing high-quality preowned machinery at competitive prices, helping businesses reduce capital expenditure.
For more information Visit Here
