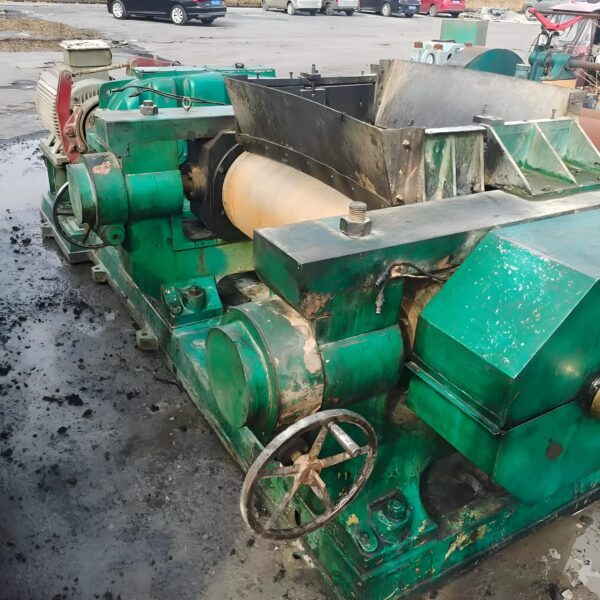

Buy | Sell Secondhand Rubber Refiner Mill 480 X 610 X 1200 mm
| Type | VAT-400 | VAT-450 | VAT-480 |
| Working diameter of rolls(mm) | ?400front roller ?480rear roller | ?450front roller ?510rear roller | ?480front roller ?610rear roller |
| Roll casting process | centrifugal composite casting | centrifugal composite casting | centrifugal composite casting |
| Roll cooling mode | Around the borehole cooling | Around the borehole cooling | Around the borehole cooling |
| The surface of the roll material | High nickel chromium molybdenum alloy | High nickel chromium molybdenum alloy | High nickel chromium molybdenum alloy |
| Working length of the roll(mm) | 650 | 800/1000 | 800/1000/1200 |
| After the roller line speed(m/min) | 32.94(optional) | 49/55.2/63.4(optional) | 57.5-75.1(optional) |
| Front and rear roller line speed ratio | 1.27-1.815(optional) | 1.38/1.82/2(optional) | 1.27-1.815(optional) |
| Production capacity(kg/h) | 300 | 360 | 500-800 |
| Motor power(kw) | 55 | 55 | 75/90 |
| Roller spacing adjustment range(mm) | 0.1-15 | 0.1-15 | 0.1-15 |
| Reducer | ZSY hard-tooth face gear | ZSY hard-tooth face gear | ZSY hard-tooth face gear |
| Bearing type | the double spherical roller bearing | the double spherical roller bearing | the double spherical roller bearing |
| Dimensions of LxWxH(mm) | 4750x2300x1835 | 4060x2200x1470 | 5070x2800x1978 |
| Quality(kg) | about10500 | about12800 | about20000 |
