Buy | Sell Used Rubber Cracker For Rubber Powder Making VAT – 450 mm
| Model | VAT-360 | VAT-400 | VAT-450 | VAT-550 | VAT-560 | VAT-660 | VAT-710 | |
| Diameter of rolls(mm) | 360 | 400 | 450 | 550 | 560-510 | 660 | 710 | |
| Working length of rolls(mm) | 900 | 1000 | 1200 | 1500 | 1530 | 2130 | 2200 | |
| Linear speed of front roll(r/min) | 16.25 | 18.65 | 21.8 | 22.5 | 27.2 | 28 | 31.9 | |
| Speed ratio of front & rear roll | 01:01.3 | 01:01.3 | 01:01.3 | 01:01.2 | 01:01.2 | 01:01.2 | 01:01.5 | |
| Max roll gap(mm) | 10 | 10 | 15 | 16 | 15 | 15 | 15 | |
| Feeding capacity per batch(kg) | 20-25 | 18-35 | 50 | 50-65 | 50-65 | 165 | 190 | |
| Driving motor power(kw) | 30 | 45 | 55 | 110 | 90 | 240 | 280 | |
| Bearing body structure | Roller bearing with grease/thin oil lubrication+square type reducer | |||||||
| Overall dimension(mm) | L | 4200 | 4920 | 5405 | 6646 | 6270 | 7280 | 8185 |
| W | 1780 | 1780 | 1740 | 2736 | 2282 | 3400 | 3910 | |
| H | 1760 | 1800 | 1790 | 2105 | 2000 | 2530 | 2270 | |
| Weight(ton) | 6.5 | 7.5 | 12 | 22 | 22.5 | 49 | 51 | |
Buy | Sell Used Tire Recycling Line Rubber Powder Production Line With 610 mm Cracker
| Model | VAT-360 | VAT-400 | VAT-450 | VAT-550 | VAT-560 | VAT-660 | VAT-710 | |
| Diameter of rolls(mm) | 360 | 400 | 450 | 550 | 560-510 | 660 | 710 | |
| Working length of rolls(mm) | 900 | 1000 | 1200 | 1500 | 1530 | 2130 | 2200 | |
| Linear speed of front roll(r/min) | 16.25 | 18.65 | 21.8 | 22.5 | 27.2 | 28 | 31.9 | |
| Speed ratio of front & rear roll | 01:01.3 | 01:01.3 | 01:01.3 | 01:01.2 | 01:01.2 | 01:01.2 | 01:01.5 | |
| Max roll gap(mm) | 10 | 10 | 15 | 16 | 15 | 15 | 15 | |
| Feeding capacity per batch(kg) | 20-25 | 18-35 | 50 | 50-65 | 50-65 | 165 | 190 | |
| Driving motor power(kW) | 30 | 45 | 55 | 110 | 90 | 240 | 280 | |
| Bearing body structure | Roller bearing with grease/thin oil lubrication+square type reducer | |||||||
| Overall dimension(mm) | L | 4200 | 4920 | 5405 | 6646 | 6270 | 7280 | 8185 |
| W | 1780 | 1780 | 1740 | 2736 | 2282 | 3400 | 3910 | |
| H | 1760 | 1800 | 1790 | 2105 | 2000 | 2530 | 2270 | |
| Weight(ton) | 6.5 | 7.5 | 12 | 22 | 22.5 | 49 | 51 | |
Resale Dual-Size Rubber Tyre Curing Machine – Maxxis MC Series
| Model | Bead Diameter | Applicable Tyre | Maximum Closing Force/Cavity (Tons) | Platen Diameter (mm) | Mould Accommodation Height | Max Tyre Internal Pressure kg/cm2 | |
| Max (mm) | Min (mm) | ||||||
| VAT 24” | 8" -12" | Scooter | 50 | 630 | 240 | 120 | 21 |
| VAT 30” | 8" - 12" | Scooter & Motorcycle | 70 | 805 | 250 | 120 | 21 |
| VAT 36” | 8" - 19" | Scooter & Motorcycle | 75 | 915 | 260 | 120 | 21 |
| VAT 42” | 16" - 19" | Passenger Cars & LCV | 140 | 1010 | 330 | 120 | 28 |
| VAT 45” | 17" - 19" | Passenger Cars & LCV | 160 | 1070 | 460 | 200 | 28 |
| Dome Presses (Truck) | |||||||
| VAT 55" | 15" - 22.5" | Bus & Truck | 295 | 1310 | 445 | 241 | 7 Kg/Cm2 |
| VAT 65.5" | 17" - 24.5" | Bus ,Truck & Tractor Rear | 453 | 1575 | 635 | 254 | 7 Kg/Cm2 |

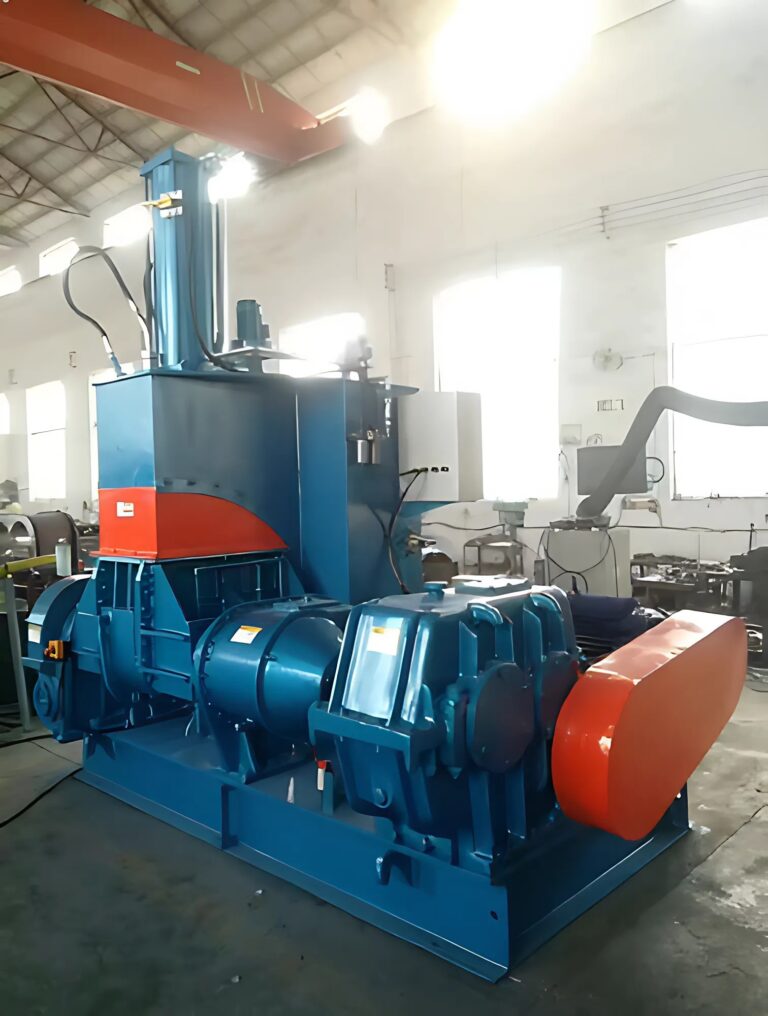

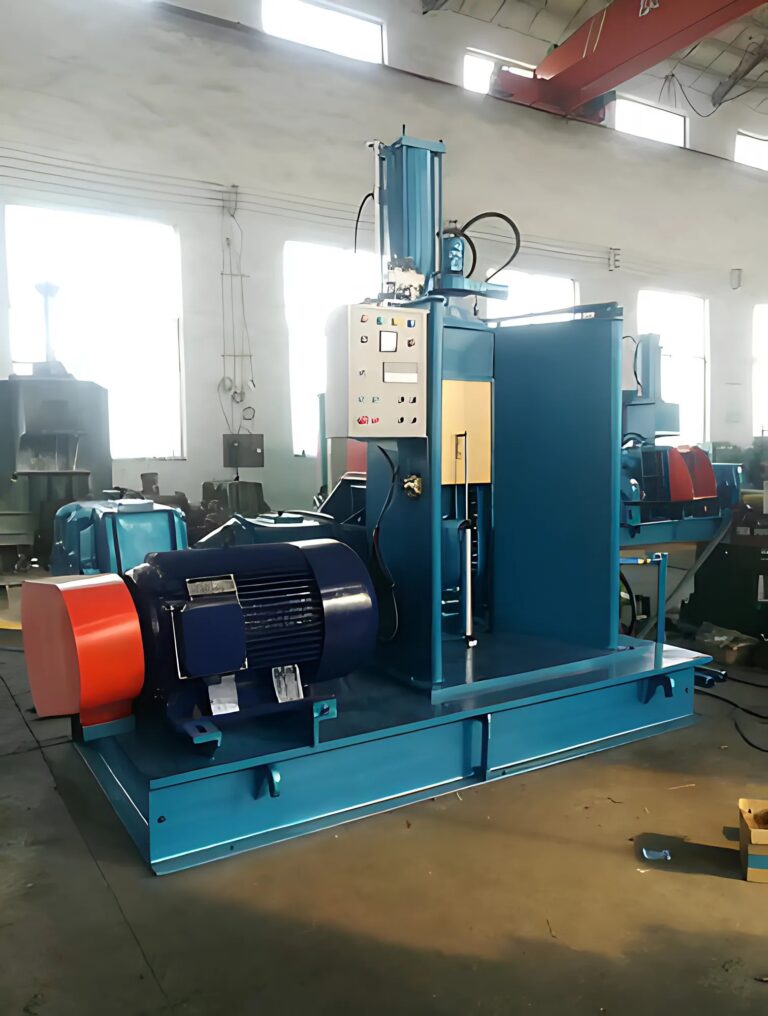

Used 35 Ltr Rubber Dispersion Kneader | Like New Condition | Best Quality
| Model | VAT-3/40 | VAT-10/40 | VAT-20/40 | VAT-35/30 | VAT-55/30 | VAT-75/30 | VAT-110/30 | |
| Total volume of mixing chamber (L) | 8 | 25 | 45 | 75 | 125 | 170 | 250 | |
| Working volume of mixing chamber (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | |
| Speed of rotor (front/rear) (r/min) | 40/31 | 40/31 | 40/31 | 30/24.5 | 30/24.5 | 30/24.5 | 30/25 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (kw) | 7.5 | 22 | 37 | 55 | 75 | 110 | 185 | |
| Turning motor power (kw) | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 4 | 4 | |
| Turning angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
|
Overall dimension (mm) |
(L) | 1670 | 2300 | 2360 | 3240 | 3400 | 3860 | 4225 |
| (W) | 950 | 1350 | 1750 | 2080 | 2300 | 2300 | 1980 | |
| (H) | 1880 | 2120 | 2430 | 2650 | 3100 | 3375 | 3180 | |
| Weight (T) | 1.2 | 2.3 | 4.5 | 6.5 | 7.5 | 10 | 11 | |
