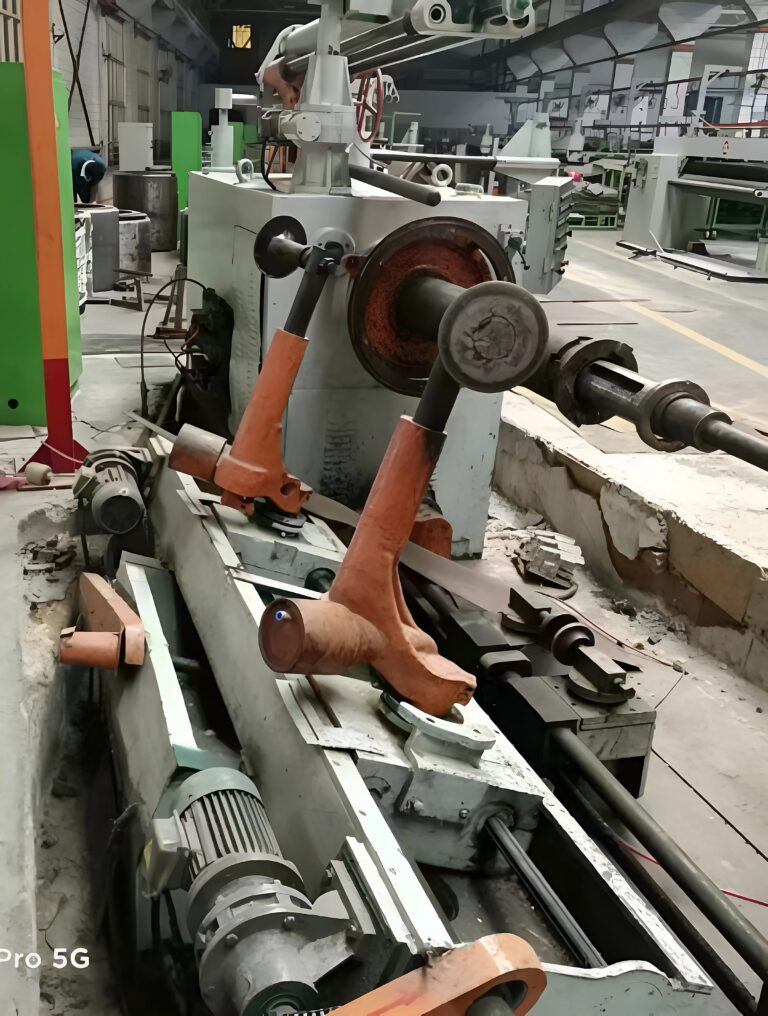

Secondhand Tire Building Machines (15-20 inch & 24-36 inch)
| Model / Specification | PR2-1215 | MC2-1519 |
| Applicable Tyre | PCR (steel, fabric) | MC (fabric) |
| Bead Diameter | 12″ ~ 15″ | 15″ ~ 19″ s |
Belt Drum Dia | Ø445.6 ~ Ø 573 | Ø525 ~ Ø 652.5 |
| Ø573 ~ Ø700 | Ø652.5 ~ Ø779.8 | |
| Transfer Ring Inner Dia. Range | Ø450 ~ Ø 700 | Ø525 ~ Ø 870 |
| Belt Drum Width | 300mm | 300mm |
| Height of Drum center above Floor | 1060mm | 1060mm |
| Width of Transfer Ring Segment | 200mm | 200mm |
Shaping Drum Range | Min190 ~ MAX560mm (Shaping Drum) | Min190 ~ MAX560mm (Shaping Drum) |
| Min100 ~ MAX560mm (Shoulder Ring) | Min100 ~ MAX560mm (Shoulder Ring) | |
| Feeding Mechanism | Cart Type / Hanging Type | Cart Type / Hanging Type |
| Width of JLB (slit cap ply) | 8mm to 12mm | 8mm to 12mm |
| Tread Width Range | 300mm | 300mm |
| Tread Length MAX. | 2500mm | 2500mm |
| Electronic Control System | Servo motor CONTROL Manual / Auto | Servo motor CONTROL Manual / Auto |
| Building rate (approximate) | 90 sec / pc | 90 sec / pc |
