Three Roll Calender Machine

Showing all 3 results

Three Roll Calender Machine

Buy | Sell Secondhand Sheeting line Two Roll Rubber Calender Machine With PLC Control

MODEL		VAT-1	VAT-2	VAT-3	VAT-4	VAT-5	VAT-6	VAT-7	VAT-8	VAT-9
Roll Diameter	Inches	6	8	10	12	14	16	18	20	22
Roll Diameter	m.m.	150	200	250	300	350	400	450	510	550
Face Width	Inches	18	24	30	36	42	48	54	60	66
Face Width	m.m.	455	610	760	915	1065	1220	1370	1525	1675
Motor	H.P	7.5	10	15	30	40	60	100	125	150
Motor	R.P.M.	980	980	980	980	980	980	980	980	980

Add to wishlist

Calendar Machine

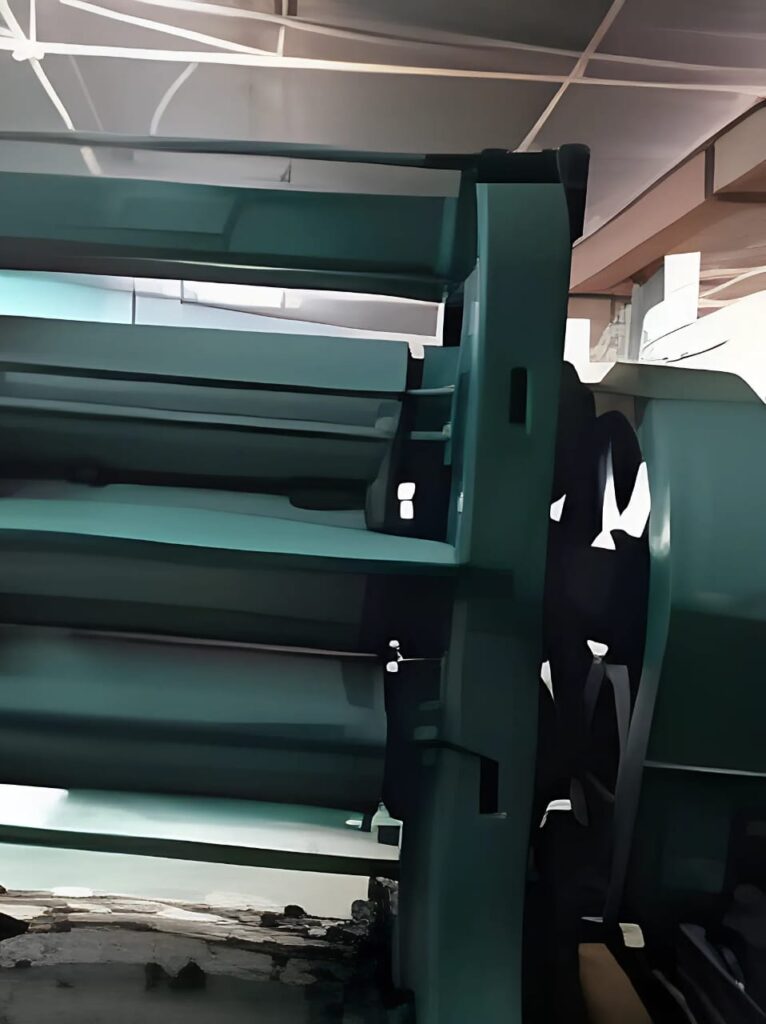

Pre-Owned Rubber Calendar Machine 3 Roll Size 16 X 48

Parameter/model		VAT-3-250	VAT-3-360	VAT-3-400	VAT-3-450	VAT-3-560	VAT-3-610	VAT-3-810
Roll diameter (mm)		250	360	400	450	560	610	810
Roll working length (mm)		720	1120	1200	1400	1650	1730	2130
Ratio of rubber speed		1:1	1:1	1:1	1:1.5:1	1:1.5:1	1:1.4:1	1:01:01
Roll speed (m/min)		2-15.9	3-20	3-26	2.6-26.2	3-30	5.4-54	3-30
Nip adjust range (mm)		0-6	0-10	0-10	0-10	0-15	0.5-25	0.2-25
Motor power (KW)		22	45	55	75	110	160	132x3
Size (mm)	Length	3950	5400	5600	7013	7200	7987	8690
Width		1110	1542	1400	1595	1760	1860	3139
Height		1810	2440	2520	2900	3800	3950	5050
Weight (KG)		5500	14000	18000	21000	35000	42000	110000

Add to wishlist

3-Roll Rubber Calender

Reconditioned 3-Roll Rubber Calender (560×1680) – 90% New

Parameter/model		VAT-3-250	VAT-3-360	VAT-3-400	VAT-3-450	VAT-3-560	VAT-3-610	VAT-3-810
Roll diameter (mm)		250	360	400	450	560	610	810
Roll working length (mm)		720	1120	1200	1400	1650	1730	2130
Ratio of rubber speed		1:1	1:1	1:1	1:1.5:1	1:1.5:1	1:1.4:1	1:01:01
Roll speed (m/min)		2-15.9	3-20	3-26	2.6-26.2	3-30	5.4-54	3-30
Nip adjust range (mm)		0-6	0-10	0-10	0-10	0-15	0.5-25	0.2-25
Motor power (KW)		22	45	55	75	110	160	132x3
Size (mm)	Length	3950	5400	5600	7013	7200	7987	8690
Width		1110	1542	1400	1595	1760	1860	3139
Height		1810	2440	2520	2900	3800	3950	5050
Weight (KG)		5500	14000	18000	21000	35000	42000	110000

Add to wishlist
