Compression MoldingIndustrial Rubber Machines
Buy | Sell Secondhand 3 Roll Rubber Calender Machine 12×38
| Parameter/model | VAT-3-250 | VAT-3-360 | VAT-3-400 | VAT-3-450 | VAT-3-560 | VAT-3-610 | VAT-3-810 | |
| Roll diameter (mm) | 250 | 360 | 400 | 450 | 560 | 610 | 810 | |
| Roll working length (mm) | 720 | 1120 | 1200 | 1400 | 1650 | 1730 | 2130 | |
| Ratio of rubber speed | 1:1 | 1:1 | 1:1 | 1:1.5:1 | 1:1.5:1 | 1:1.4:1 | 1:01:01 | |
| Roll speed (m/min) | 2-15.9 | 3-20 | 3-26 | 2.6-26.2 | 3-30 | 5.4-54 | 3-30 | |
| Nip adjust range (mm) | 0-6 | 0-10 | 0-10 | 0-10 | 0-15 | 0.5-25 | 0.2-25 | |
| Motor power (KW) | 22 | 45 | 55 | 75 | 110 | 160 | 132x3 | |
| Size (mm) | Length | 3950 | 5400 | 5600 | 7013 | 7200 | 7987 | 8690 |
| Width | 1110 | 1542 | 1400 | 1595 | 1760 | 1860 | 3139 | |
| Height | 1810 | 2440 | 2520 | 2900 | 3800 | 3950 | 5050 | |
| Weight (KG) | 5500 | 14000 | 18000 | 21000 | 35000 | 42000 | 110000 | |

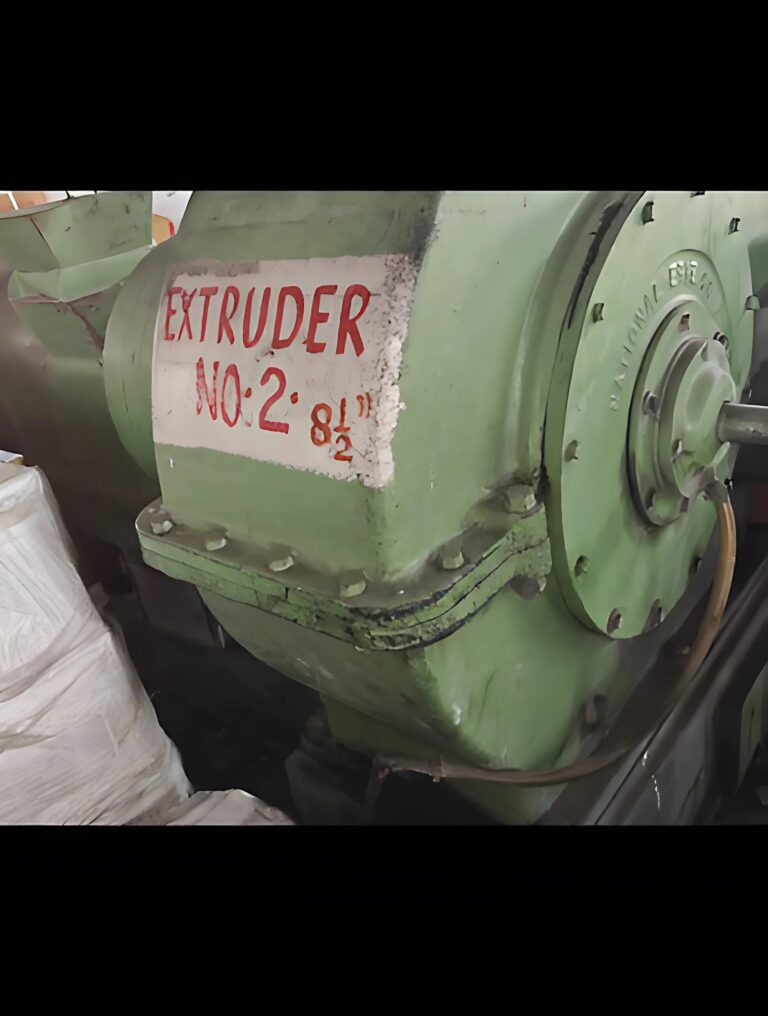

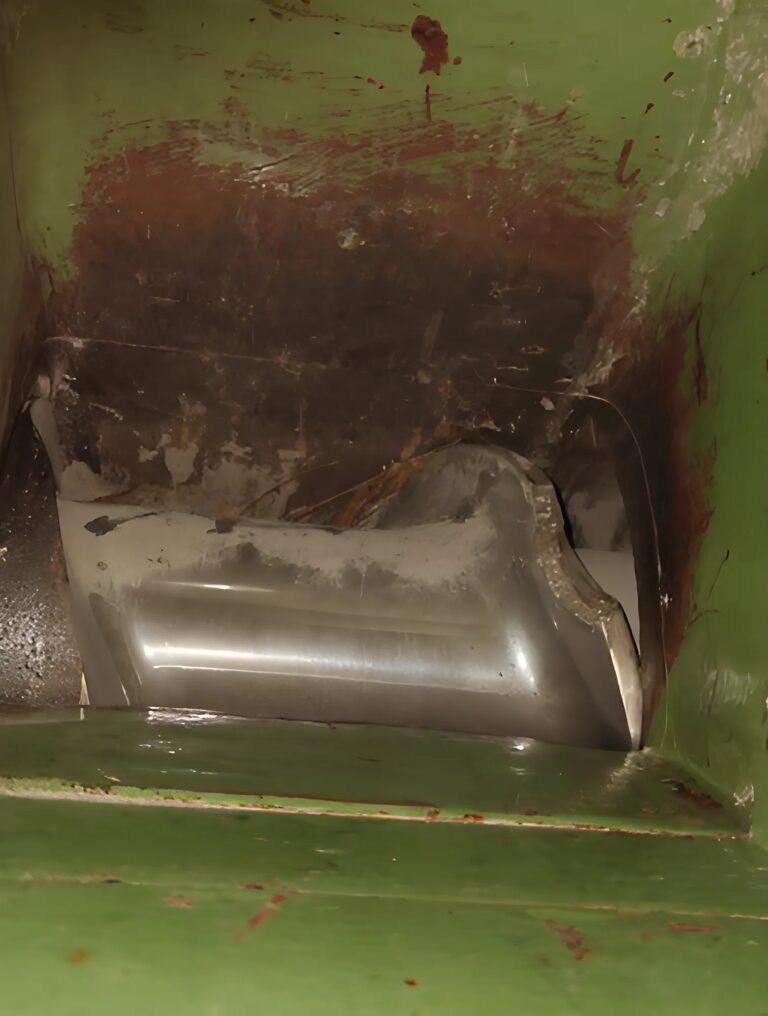

Secondhand 8.5 Inch Rubber Extruder Complete Machine
| MODEL | Vatsn-1 | Vatsn-2 | Vatsn-3 | Vatsn-4 | Vatsn-5 | Vatsn-6 | Vatsn-8 | Vatsn-9 | ||
Scroll Size | Inches | 2 | 3 | 4 | 4.5 | 5 | 6 | 8 | 10 | |
| m.m. | 50 | 75 | 100 | 115 | 125 | 150 | 200 | 250 | ||
| Scroll Speed | RPM | 38 | 38 | 38 | 38 | 38 | 38 | 38 | 38 | |
| L/D Ratio | 4:1 TO 6:1 | |||||||||
| Motor | H.P | 7.5 | 10 | 15 | 20 | 25 | 40 | 60 | 100 | |
| Reduction Gear Ratio | 25:01:00 | 25:01:00 | 25:01:00 | 25:01:00 | 25:01:00 | 25:01:00 | 25:01:00 | 25:01:00 | ||
| Feed Roller | Not Available | Optional | ||||||||
| Extruder Head | Standard Adaptors other heads as per customer requirement(optional) | |||||||||
| Barrel Heating/Cooling | Jacketed type in single zone for efficient heating /cooling | |||||||||
| Water Cooling Requirement | LPM | 10 | 15 | 20 | 30 | 40 | 80 | 150 | 180 | |
