Showing all 3 results

hydraulic press, Plus One hydraulic press, fully automatic press, second-hand hydraulic press, pre-owned press, industrial press, metal forming machine, rubber molding press, used hydraulic press, Vatsn Tecnic, hydraulic press supplier, reconditioned press, industrial machinery, AMC services.

Plus One Machine Fabrik (Belgaum) – Fully Automatic Hydraulic Press

MODEL NO.	VAT-75	VAT-100	VAT-150	VAT-200	VAT-250	VAT-300	VAT-350	VAT-400	VAT-500
PLATEN SIZE (MM)	360x360	410x410	460x460	510x510	610x610	660x660	760x760	800x850	1000x1000
MACHINE TONNAGE	75	100	150	200	250	300	350	400	500
RAM SIZE DIA (MM)	220 MM	250 MM	300 MM	350 MM	400 MM	450 MM	500 MM	550 MM	600 MM
DAYLITE GAP	500 MM	500 MM	500 MM	400-500 MM	400-500 MM	400-500 MM	400-500 MM	500-800 MM	500-900 MM
MAN MOTOR	5 HP	5 HP	5 HP	7.5 HP	10 HP	10 HP	15 HP	15 HP	20 HP
MAIN RAM STROKE	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM

Add to wishlist

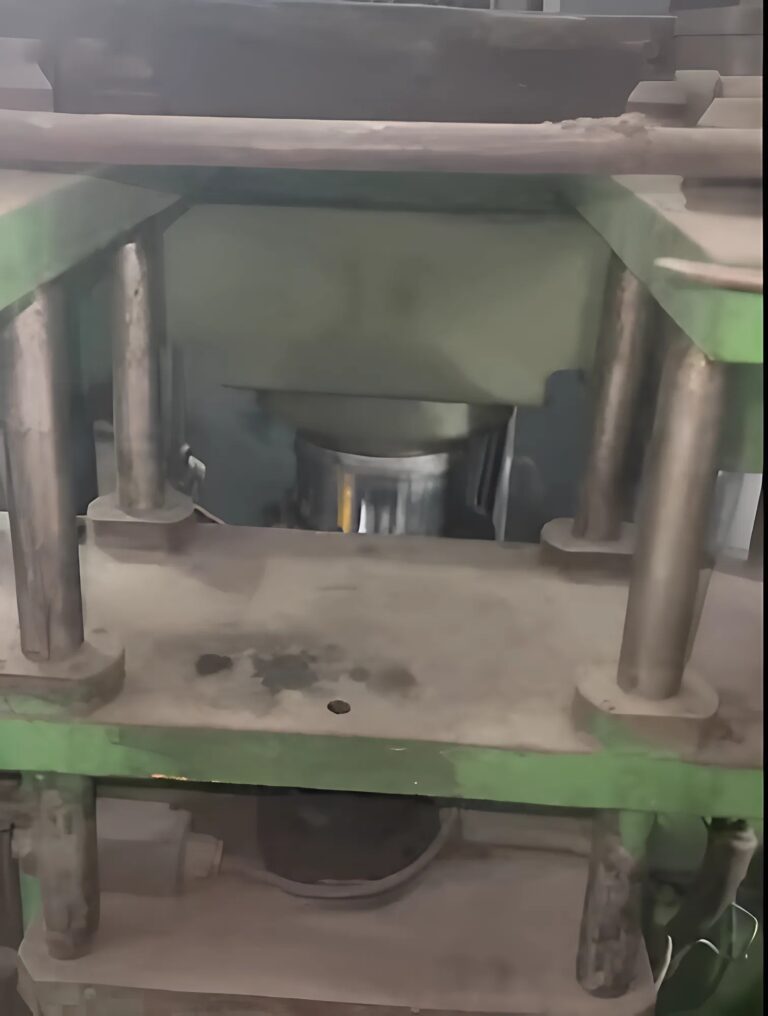

1100 Ton Hydraulic Press

Reconditioned 1100 Ton Hydraulic Press 2017 Model 51×59 Inch

Type	VAT-D780*600	VAT-D800*1000	VAT-D900*1100	VAT-D1000*1200	VAT-D1350*1500
Total pressure (T)	160	250	300	500	1000
Plate size (mm)	780*600	800*1000	900*1100	1000*1200	1350*1500
Plate clearance (mm)	200	140	150	150	150
Layer number	2	4	4	4	6
Motor power (kw)	5.5	7.5	7.5	11	22

Add to wishlist

Used 20-Liter Rubber Dispersion Kneader

Used 20-Liter Rubber Dispersion Kneader With Automatic Control

Model		VAT-3/40	VAT-10/40	VAT-20/40	VAT-35/30	VAT-55/30	VAT-75/30	VAT-110/30
Total volume of mixing chamber (L)		8	25	45	75	125	170	250
Working volume of mixing chamber (L)		3	10	20	35	55	75	110
Speed of rotor (front/rear) (r/min)		40/31	40/31	40/31	30/24.5	30/24.5	30/24.5	30/25
Compressed air pressure (mpa)		0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Cooling water pressure (mpa)		0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Main motor power (kw)		7.5	22	37	55	75	110	185
Turning motor power (kw)		0.55	1.1	1.5	1.5	2.2	4	4
Turning angle (°)		140	140	140	140	140	140	140
Overall dimension (mm)	(L)	1670	2300	2360	3240	3400	3860	4225
	(W)	950	1350	1750	2080	2300	2300	1980
	(H)	1880	2120	2430	2650	3100	3375	3180
Weight (T)		1.2	2.3	4.5	6.5	7.5	10	11
