Pre-Owned 50L Banbury Mixer – Dalian Huahan 2012
width=”107″ /><col width=”152″ /><td>80<td>100</tr>
| Model | VAT(M) – 50/ 40 | VAT(M) – 75/ 40 | VAT(M) – 110/ 40 | VAT(M) – 140/ 40 | VAT(M) – 160/ 40 | VAT(M) – 190/ 40 | VAT(M) – 250/ 40 | VAT(M) – 270/ 40 | |
| Total volume of mixing chamber (L) | 50 | 75 | 110 | 140 | 160 | 190 | 250 | 270 | |
| Working volume of mixing chamber (L) | 35 | 50 | 120 | 140 | 190</td><td>205 | ||||
| Speed of rear rotor (r/min) | 40 | 40(6-60) | 40(4-40) | 40 | 40(6-60) | 40(6-60) | 20/40(4-40,6-60) | 20/40(4-40,6-60) | |
| Rotor speed ratio | 1.167 | 1.185 | 1.156 | 1.15 | 1:1.143/1:1 | 1:1.143/1:1 | 1.2:1/1:1</td> | 1:1.7/1:1 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (KW) | 75 | 160/315 | 220/400 | 315 | 355/500/750 | 800/1100 | 1120/1250/1500 | 1100/1250/1500 | |
Overall dimension (mm) | (L) | 5095 | 5600 | 5690 | 6525 | 6760 | 7000 | 7500 | 8690 |
| (W) | 1950 | 2300 | 2745 | 2800 | 2900 | 3330 | 4305 | 4325 | |
| (H) | 3180 | 4600 | 4670 | 5280 | 5280 | 6200 | 5768 | 6140 | |
| Weight (T) | 11 | 16..8 | 28 | 33 | 38 | 46 | 48.5 | 51 | |

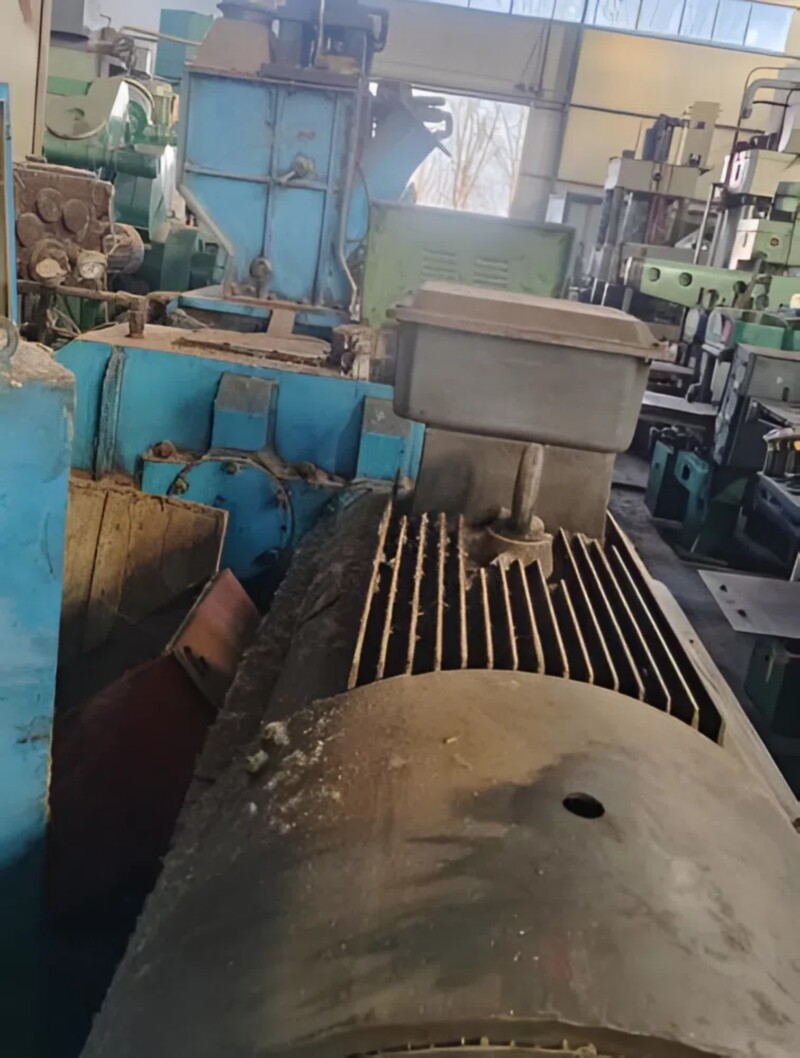

Pre-Owned 50L Banbury Mixer – Dalian Huahan 2012
Looking for a reliable Banbury mixer that delivers consistent rubber mixing performance at a fraction of the cost of new equipment? This pre-owned 50L internal Intermix Machine by Dalian Huahan (2012) is an excellent choice for manufacturers who demand performance, durability, and energy efficiency.
Category: INTERMIX – BANBURY MIXER
A staple in rubber compounding equipment, the Rubber mixer remains essential for efficiently mixing rubber and plastic materials. This 50L intermix model offers high shear, precise temperature control, and excellent material dispersion, making it ideal for various rubber production lines.
What Is a Banbury Mixer? With Diagram Reference
The Rubber mixer diagram typically shows a closed chamber with two counter-rotating rotors, a hydraulic top ram, and a discharge system—all key components found in this Dalian Huahan model. Understanding the Intermix Machine helps visualize how this machine ensures uniform dispersion and efficient kneading.
Key Features of This Rubber Mixer
Efficient Rotor System – Based on Banbury Mixer Design
Incorporates a tangential rotor system similar to those shown in standard Internal Mixer diagrams
Supports fast, uniform mixing of rubber compounds, ideal for NBR, SBR, EPDM, and natural rubber
Advanced Cooling System for Better Internal Mixing
Fully water-jacketed Internal mixer chamber, rotors, and ram
Ensures consistent temperature control as explained in a Banbury mixer diagram flow
Durable Chrome-Coated Surfaces
All parts in contact with rubber are chrome-plated or wear-resistant
Protects the Kneader Mixer from corrosion and abrasion during continuous operation
Hydraulic Sealing & Discharge System
Uses Banbury mixer-style external hydraulic sealing for a tight, leak-proof mix
Bottom discharge system for smooth and safe material removal
Smart Controls – Just Like the Diagram Shows
The Kneader Mixer diagram often includes an intelligent control panel. This machine is equipped with:
PLC-based control system
Touchscreen interface
Speed, pressure, and recipe memory functions
Fault alarms and parameter settings, enhancing reliability
Why Choose This Pre-Owned Banbury Mixer?
Trusted Kneader Mixer structure with proven performance
Easy to understand and operate—even for those using a Batch Mixer for training
Suitable for manufacturers of automotive parts, footwear, industrial rubber goods, and more
Applications of This Rubber Mixer
Rubber & plastic compounding
Masterbatch mixing
EVA, PVC, and polymer blending
Designed to match standard Batch Mixer workflows
