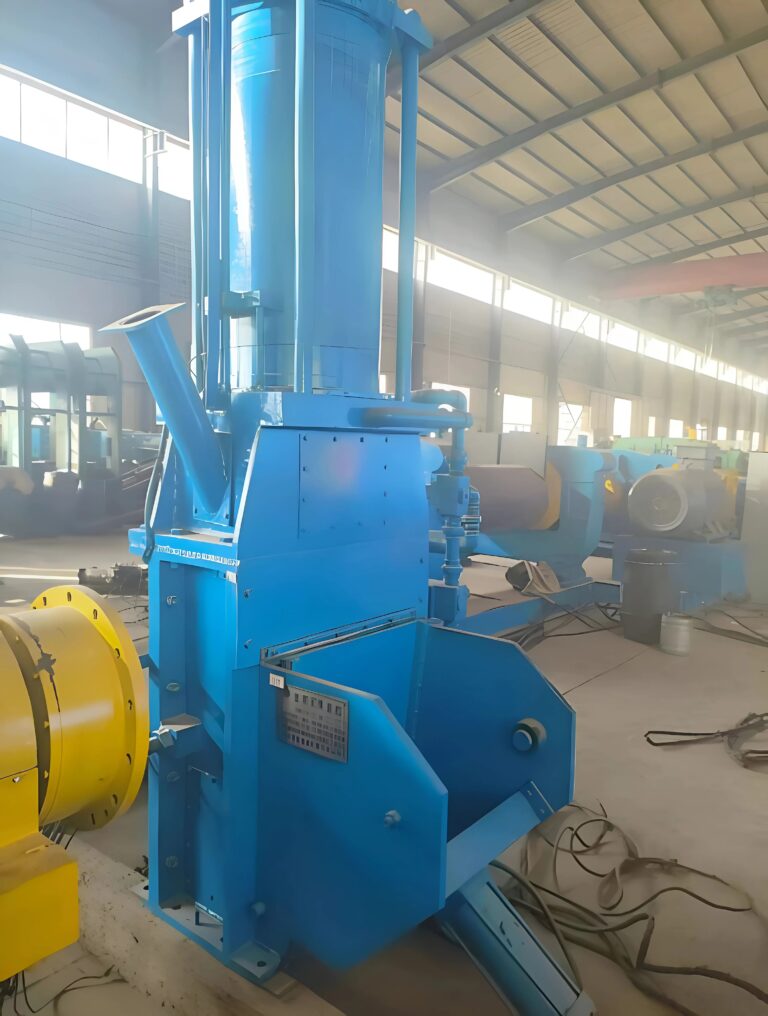

Model		VAT-45E	VAT-90E	VAT-135E	VAT160E	VAT-190E
Total volume of mixing chamber (L)		45	90	135	160	190
Working volume of mixing chamber (L)		30	56	90	104	125
Speed of rear rotor (r/min)		6-60	5-50	6-60	5-50	6-60
Rotor speed ratio		1:1	1:1	1:1	1:1	1:1
Compressed air pressure (map)		0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Cooling water pressure (map)		0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Main motor power (kw)		280	450	720	750	1100
Overall dimension (mm)	(L)	6200	7400	8200	8600	9000
	(W)	2500	2880	2950	3000	4000
	(H)	3750	4700	5375	6000	6220
Weight (T)		15	23	29	39	45

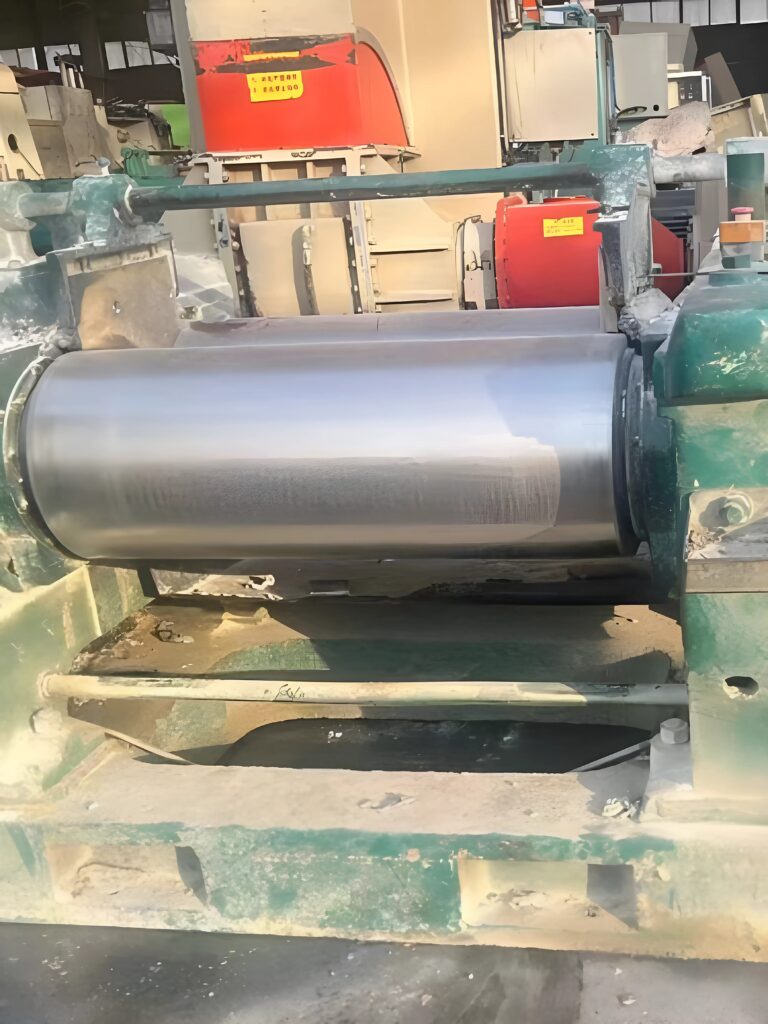

Model		VAT-250	VAT-300	VAT-360	VAT-400	VAT-450	VAT-550	VAT-560	VAT-610	VAT-660	VAT-660(R)	VAT-710	VAT-760	VAT-810
Diameter of rolls(mm)		250	300	360	400	450	550	560	610	660	660	710	760	810
Working length of rolls(mm)		620	760	900	1000	1200	1530	1530	1830	2130	2130	2200	2540	2540
Linear speed of front roll(m/min)		15.2	14.5	16.26	18.65	23.85	27.18	27.61	28.7	32.45	28.6	31.9	33.23	31.9
Roll Friction Ratio		1:1.10	1:1.10	1:1.25	1:1.27	1:1.27	1:1.25	1:1.25	1:1.25	1:1.09	1:1.24	1:1.09	1:1.09	1:1.09
Batch Capacity		10-15	14-16	15-20	25-35	30-50	50-60	50-60	90-120	165	165	350	350	350
Motor Power		18.5	22	30	40	55	110	110	160	185	250	280	315	355
Max. Nip(mm)		8	8	10	10	10	15	15	15	15	15	15	15	15
Overall dimension(mm)	L	3220	3570	3920	4380	5050	6040	6040	6750	7040	7465	7650	8560	8680
	W	1500	1400	1650	1710	1920	2100	2100	3040	3660	3660	3200	2970	3575
	H	1290	1350	1725	1880	1870	1625	1625	1743	2080	2080	2860	1970	3020
Weight(ton)		3.8	4.5	6	8	13	22	22	35	45	45	50	58	68
