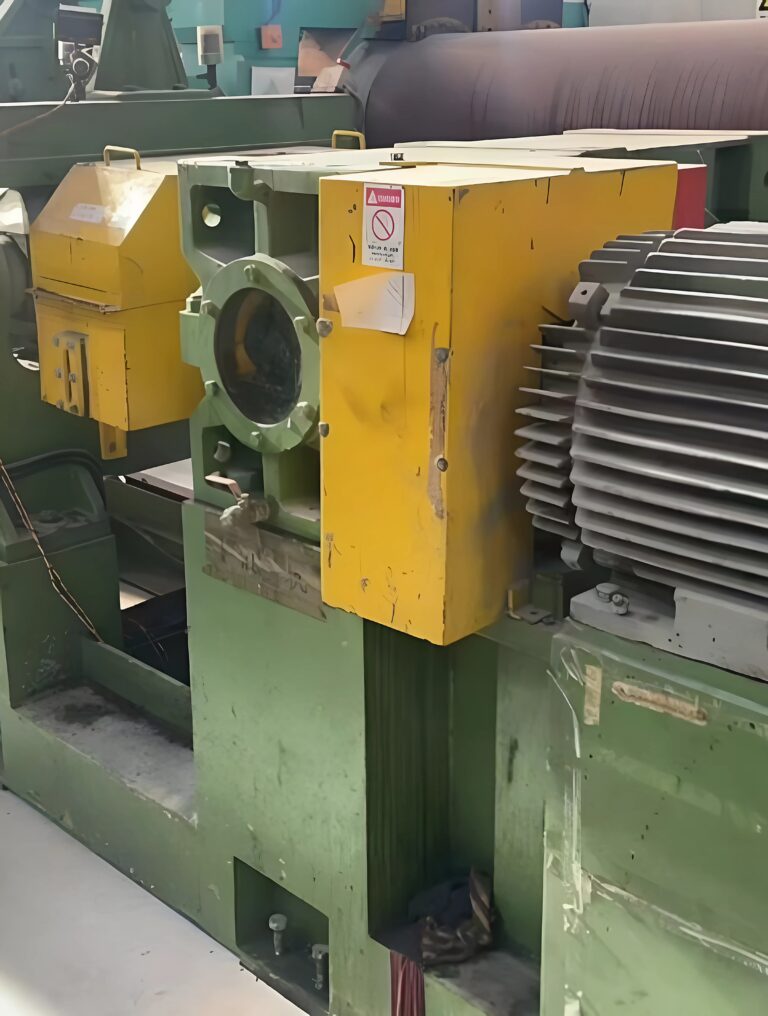

Second Hand Rubber Mixing Mill Machine

Second Hand Rubber Mixing Mill Machine 360

Model		VAT-250	VAT-300	VAT-360	VAT-400	VAT-450	VAT-550	VAT-610	VAT-660	VAT-660(R)	VAT-710	VAT-760	VAT-810
Diameter of rolls(mm)		250	300	360	400	450	550	610	660	660	710	760	810
Working length of rolls(mm)		620	760	900	1000	1200	1530	1830	2130	2130	2200	2540	2540
Linear speed of front roll(m/min)		15.2	14.5	16.26	18.65	23.85	27.18	28.7	32.45	28.6	31.9	33.23	31.9
Roll Friction Ratio		1:1.10	1:1.10	1:1.25	1:1.27	1:1.27	1:1.25	1:1.25	1:1.09	1:1.24	1:1.09	1:1.09	1:1.09
Batch Capacity		10-15	14-16	15-20	25-35	30-50	50-60	90-120	165	165	350	350	350
Motor Power		18.5	22	30	40	55	110	160	185	250	280	315	355
Max. Nip(mm)		8	8	10	10	10	15	15	15	15	15	15	15
Overall dimension(mm)	L	3220	3570	3920	4380	5050	6040	6750	7040	7465	7650	8560	8680
	W	1500	1400	1650	1710	1920	2100	3040	3660	3660	3200	2970	3575
	H	1290	1350	1725	1880	1870	1625	1743	2080	2080	2860	1970	3020
Weight(ton)		3.8	4.5	6	8	13	22	35	45	45	50	58	68

Add to wishlist

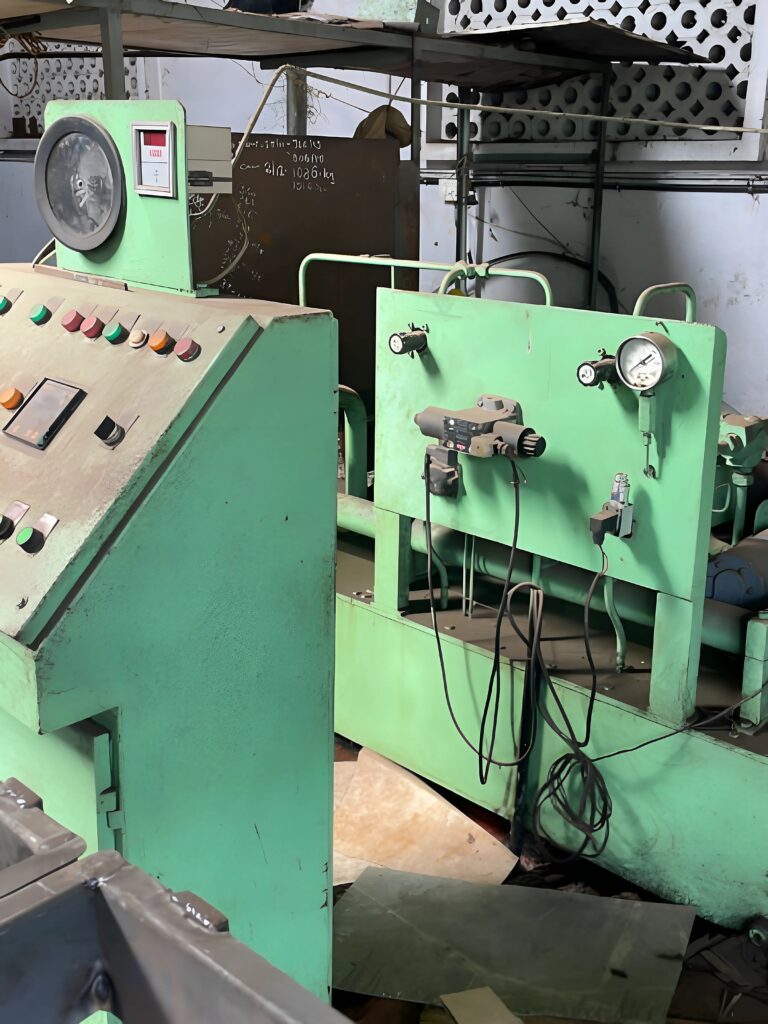

Used 26x26 Rubber Hydraulic Press

Used 26×26 Rubber Hydraulic Press, 4 Daylight, 14-Inch Piston

MODEL NO.	VAT-75	VAT-100	VAT-150	VAT-200	VAT-250	VAT-300	VAT-350	VAT-400	VAT-500
PLATEN SIZE (MM)	360x360	410x410	460x460	510x510	610x610	660x660	760x760	800x850	1000x1000
MACHINE TONNAGE	75	100	150	200	250	300	350	400	500
RAM SIZE DIA (MM)	220 MM	250 MM	300 MM	350 MM	400 MM	450 MM	500 MM	550 MM	600 MM
DAYLITE GAP	500 MM	500 MM	500 MM	400-500 MM	400-500 MM	400-500 MM	400-500 MM	500-800 MM	500-900 MM
MAN MOTOR	5 HP	5 HP	5 HP	7.5 HP	10 HP	10 HP	15 HP	15 HP	20 HP
MAIN RAM STROKE	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM

Add to wishlist

Rubber Hydraulic Press

Used Rubber Hydraulic Press Plate size : 8 x 4ft 8 inch x 8piston

PLATEN SIZE (MM)	360x360	410x410	460x460	510x510	610x610	660x660	760x760	800x850	1000x1000
MACHINE TONNAGE	75	100	150	200	250	300	350	400	500
RAM SIZE DIA (MM)	220 MM	250 MM	300 MM	350 MM	400 MM	450 MM	500 MM	550 MM	600 MM
DAYLITE GAP	500 MM	500 MM	500 MM	400-500 MM	400-500 MM	400-500 MM	400-500 MM	500-800 MM	500-900 MM
MAN MOTOR	5 HP	5 HP	5 HP	7.5 HP	10 HP	10 HP	15 HP	15 HP	20 HP
MAIN RAM STROKE	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM	500 MM

Add to wishlist
