Compression MoldingVatsn Tecnic Services
Buy | Sell Used Rubber Conveyor Belt Making Machine 2.2*13 Meters, Made by Qingda
| Parameter | unit | VAT-1800X12000*2 | VAT-1800X10000*2 | VAT-1600X10000*2 | VAT-1600X10000*1 | VAT-1400X10000*1 |
| Hot-plate size | mm | 1800*12000 | 1800*1000 | 1600*10000 | 1600*10000 | 1400*10000 |
| Total pressure | mn | 74 | 72 | 56 | 64 | 49 |
| Hot-plate unit pressure | mpa | 3.4 | 4 | 3.5 | 4 | 3.5 |
| Plunger diameter | mm | 500 | 500 | 450 | 500 | 450 |
| Plunger No | 18 | 18 | 18 | 18 | 18 | |
| Max plunger stroke | mm | 400 | 300 | 400 | 300 | 300 |
| Gripping strength | mn | 1.2 | 1.5 | 1.2 | 1.2 | 0.9 |
| Tension force | mn | 1.101.2 | 1.1 | 1 | 0.5 | 0.9 |
| Steam pressure | mpa | 0.63 | 0.6-0.8 | 0.63 | 0.6-0.8 | 0.63 |
| Cooling water pressure | mpa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| controlling method | PLC | PLC | PLC | PLC | PLC |

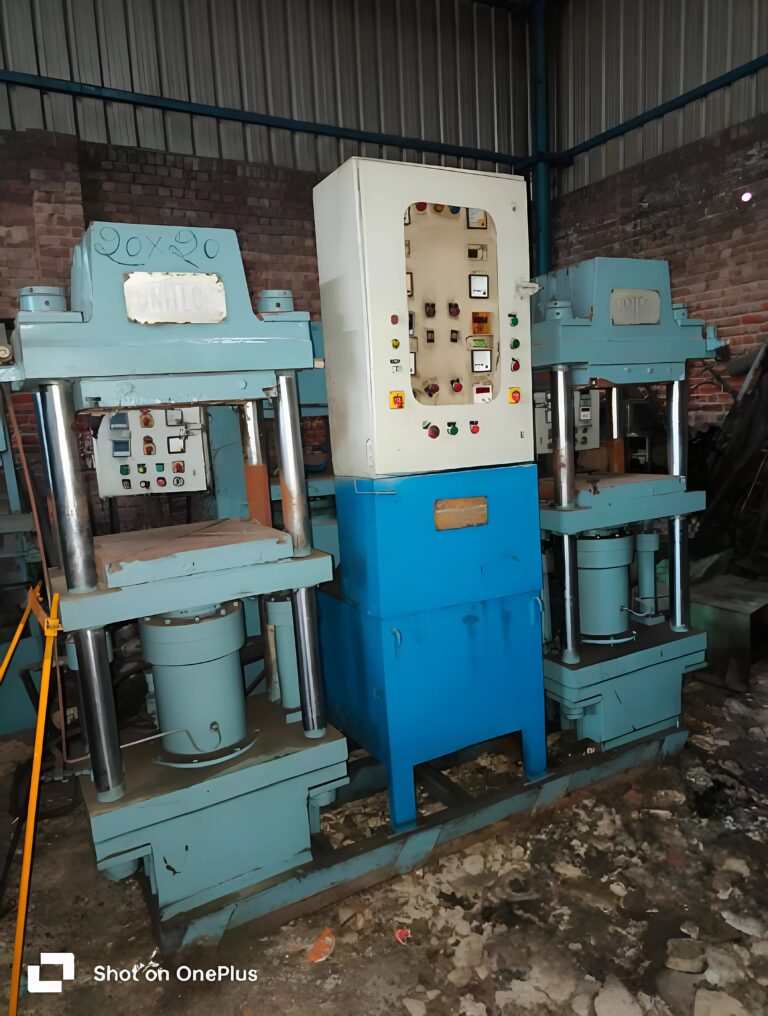

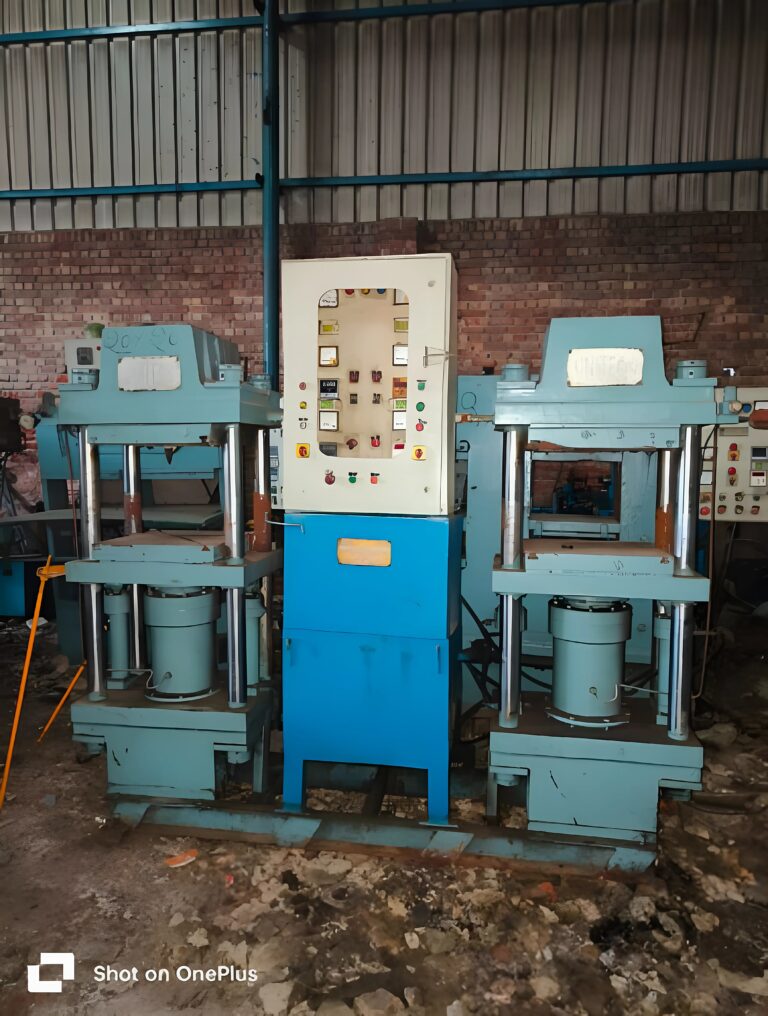

Pre-Owned Uni-Tech 20/20 Hydraulic Press with 10-Inch Piston
| MODEL NO. | VAT-75 | VAT-100 | VAT-150 | VAT-200 | VAT-250 | VAT-300 | VAT-350 | VAT-400 | VAT-500 | |
| PLATEN SIZE (MM) | 360x360 | 410x410 | 460x460 | 510x510 | 610x610 | 660x660 | 760x760 | 800x850 | 1000x1000 | |
| MACHINE TONNAGE | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 | |
| RAM SIZE DIA (MM) | 220 MM | 250 MM | 300 MM | 350 MM | 400 MM | 450 MM | 500 MM | 550 MM | 600 MM | |
| DAYLITE GAP | 500 MM | 500 MM | 500 MM | 400-500 MM | 400-500 MM | 400-500 MM | 400-500 MM | 500-800 MM | 500-900 MM | |
| MAN MOTOR | 5 HP | 5 HP | 5 HP | 7.5 HP | 10 HP | 10 HP | 15 HP | 15 HP | 20 HP | |
| MAIN RAM STROKE | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | |
