Compression MoldingRubber processing equipment

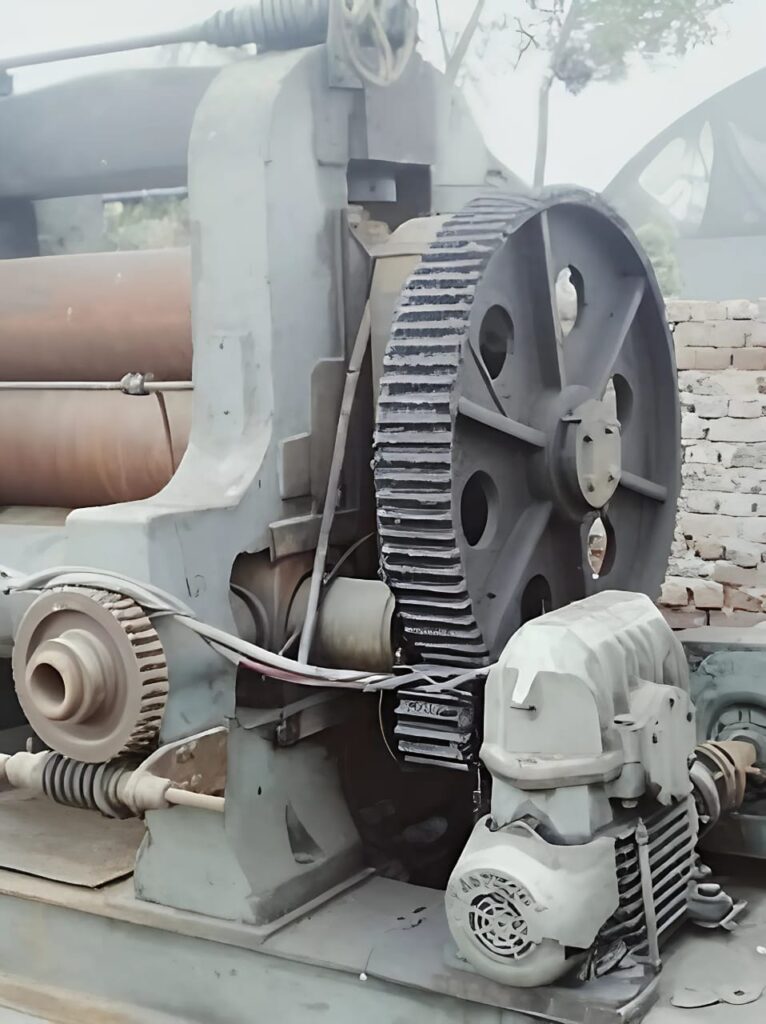

Pre Owned Rubber Mixing Mill 8 Inch x 18 Inch Available Now
| Model | VAT-250 | VAT-300 | VAT-360 | VAT-400 | VAT-450 | VAT-550 | VAT-610 | VAT-660 | VAT-660(R) | VAT-710 | VAT-760 | VAT-810 | |
| Diameter of rolls(mm) | 250 | 300 | 360 | 400 | 450 | 550 | 610 | 660 | 660 | 710 | 760 | 810 | |
| Working length of rolls(mm) | 620 | 760 | 900 | 1000 | 1200 | 1530 | 1830 | 2130 | 2130 | 2200 | 2540 | 2540 | |
| Linear speed of front roll(m/min) | 15.2 | 14.5 | 16.26 | 18.65 | 23.85 | 27.18 | 28.7 | 32.45 | 28.6 | 31.9 | 33.23 | 31.9 | |
| Roll Friction Ratio | 1:1.10 | 1:1.10 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.25 | 1:1.25 | 1:1.09 | 1:1.24 | 1:1.09 | 1:1.09 | 1:1.09 | |
| Batch Capacity | 10-15 | 14-16 | 15-20 | 25-35 | 30-50 | 50-60 | 90-120 | 165 | 165 | 350 | 350 | 350 | |
| Motor Power | 18.5 | 22 | 30 | 40 | 55 | 110 | 160 | 185 | 250 | 280 | 315 | 355 | |
| Max. Nip(mm) | 8 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
Overall dimension(mm) | L | 3220 | 3570 | 3920 | 4380 | 5050 | 6040 | 6750 | 7040 | 7465 | 7650 | 8560 | 8680 |
| W | 1500 | 1400 | 1650 | 1710 | 1920 | 2100 | 3040 | 3660 | 3660 | 3200 | 2970 | 3575 | |
| H | 1290 | 1350 | 1725 | 1880 | 1870 | 1625 | 1743 | 2080 | 2080 | 2860 | 1970 | 3020 | |
| Weight(ton) | 3.8 | 4.5 | 6 | 8 | 13 | 22 | 35 | 45 | 45 | 50 | 58 | 68 | |

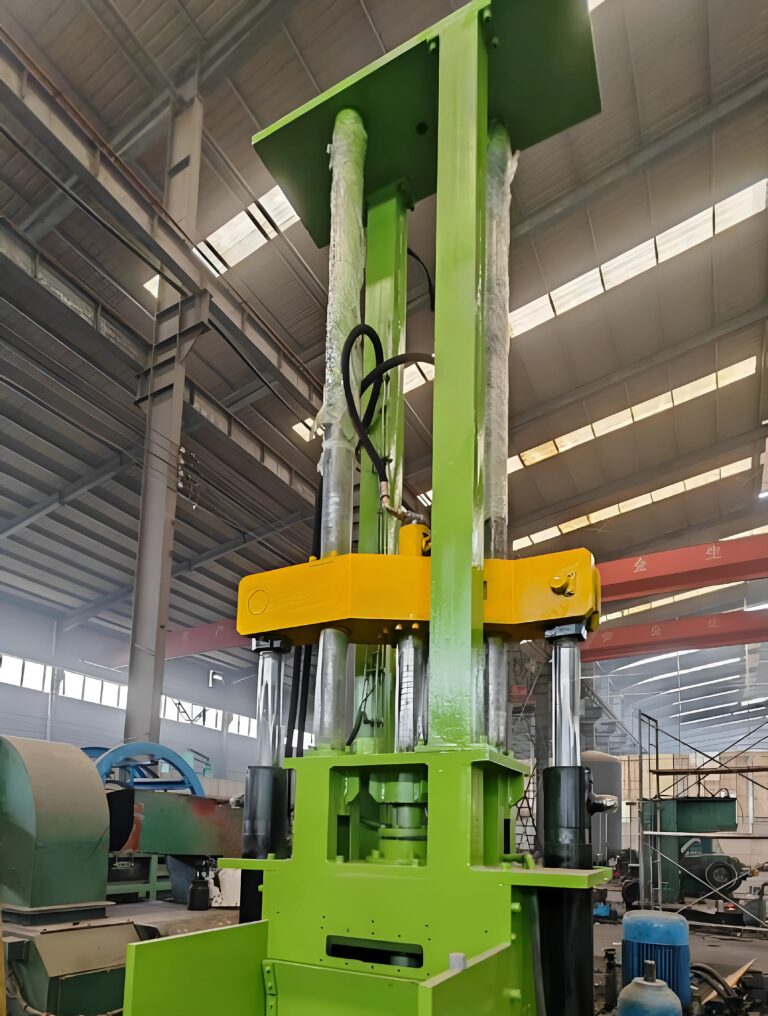

Pre-Owned Rubber Banbury Mixer 160 Ltr Hydraulic Type Machine
| Model | VAT-45E | VAT-90E | VAT-135E | VAT160E | VAT-190E | |||
| Total volume of mixing chamber (L) | 45 | 90 | 135 | 160 | 190 | |||
| Working volume of mixing chamber (L) | 30 | 56 | 90 | 104 | 125 | |||
| Speed of rear rotor (r/min) | 6-60 | 5-50 | 6-60 | 5-50 | 6-60 | |||
| Rotor speed ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | |||
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |||
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |||
| Main motor power (kw) | 280 | 450 | 720 | 750 | 1100 | |||
Overall dimension (mm) | (L) | 6200 | 7400 | 8200 | 8600 | 9000 | ||
| (W) | 2500 | 2880 | 2950 | 3000 | 4000 | |||
| (H) | 3750 | 4700 | 5375 | 6000 | 6220 | |||
| Weight (T) | 15 | 23 | 29 | 39 | 45 | |||
Pre-Owned Rubber Calendar 4 Roll Size 14 X 42
| Parameter/model | VAT-4-230 | VAT-4-360 | VAT-4-400 | VAT-4-450 | VAT-4-550 | VAT-4-610 | VAT-4-810 | |
| Roll diameter (mm) | 230 | 360 | 400 | 450 | 550 | 610 | 810 | |
| Roll working length (mm) | 630 | 1120 | 1200 | 1400 | 1500 | 1730 | 2500 | |
| Ratio of rubber speed | 1:1:1:1 | 0.7:1:1:0.7 | 1:1.4:1.4:1 | 1:1.5:1.5:1 | 1:1.5:1.5:1 | 1:1.4:1.4:1 | 1:1.4:1.4:1 | |
| Roll speed (m/min) | 2.1-21 | 2-20.1 | 3-26 | 2.5-25 | 3-30 | 8-50 | 4-40 | |
| Nip adjust range (mm) | 0-10 | 0-10 | 0-10 | 0-10 | 0-15 | 0-10 | 0-10 | |
| Motor power (KW) | 15 | 55 | 75 | 110 | 160 | 185 | 132x4 | |
| Size (mm) | Length | 2800 | 3300 | 6400 | 6620 | 7550 | 7880 | 11400 |
| Width | 930 | 1040 | 1620 | 1970 | 2400 | 2560 | 3900 | |
| Height | 1890 | 2350 | 2490 | 2740 | 3400 | 3920 | 5140 | |
| Weight (KG) | 5000 | 16000 | 20000 | 23000 | 45000 | 50000 | 130000 | |
Reconditioned 16×42 Rubber Mixing Mill – 60 HP Motor in Kerala
| Model | VAT-250 | VAT-300 | VAT-360 | VAT-400 | VAT-450 | VAT-550 | VAT-610 | VAT-660 | VAT-660(R) | VAT-710 | VAT-760 | VAT-810 | |
| Diameter of rolls(mm) | 250 | 300 | 360 | 400 | 450 | 550 | 610 | 660 | 660 | 710 | 760 | 810 | |
| Working length of rolls(mm) | 620 | 760 | 900 | 1000 | 1200 | 1530 | 1830 | 2130 | 2130 | 2200 | 2540 | 2540 | |
| Linear speed of front roll(m/min) | 15.2 | 14.5 | 16.26 | 18.65 | 23.85 | 27.18 | 28.7 | 32.45 | 28.6 | 31.9 | 33.23 | 31.9 | |
| Roll Friction Ratio | 1:1.10 | 1:1.10 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.25 | 1:1.25 | 1:1.09 | 1:1.24 | 1:1.09 | 1:1.09 | 1:1.09 | |
| Batch Capacity | 10-15 | 14-16 | 15-20 | 25-35 | 30-50 | 50-60 | 90-120 | 165 | 165 | 350 | 350 | 350 | |
| Motor Power | 18.5 | 22 | 30 | 40 | 55 | 110 | 160 | 185 | 250 | 280 | 315 | 355 | |
| Max. Nip(mm) | 8 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
Overall dimension(mm) | L | 3220 | 3570 | 3920 | 4380 | 5050 | 6040 | 6750 | 7040 | 7465 | 7650 | 8560 | 8680 |
| W | 1500 | 1400 | 1650 | 1710 | 1920 | 2100 | 3040 | 3660 | 3660 | 3200 | 2970 | 3575 | |
| H | 1290 | 1350 | 1725 | 1880 | 1870 | 1625 | 1743 | 2080 | 2080 | 2860 | 1970 | 3020 | |
| Weight(ton) | 3.8 | 4.5 | 6 | 8 | 13 | 22 | 35 | 45 | 45 | 50 | 58 | 68 | |
Secondhand 90 Liter Intermix Rubber Mixer Like New Machine
| Model | VAT-45E | VAT-90E | VAT-135E | VAT160E | VAT-190E | |
| Total volume of mixing chamber (L) | 45 | 90 | 135 | 160 | 190 | |
| Working volume of mixing chamber (L) | 30 | 56 | 90 | 104 | 125 | |
| Speed of rear rotor (r/min) | 6-60 | 5-50 | 6-60 | 5-50 | 6-60 | |
| Rotor speed ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (kw) | 280 | 450 | 720 | 750 | 1100 | |
Overall dimension (mm) | (L) | 6200 | 7400 | 8200 | 8600 | 9000 |
| (W) | 2500 | 2880 | 2950 | 3000 | 4000 | |
| (H) | 3750 | 4700 | 5375 | 6000 | 6220 | |
| Weight (T) | 15 | 23 | 29 | 39 | 45 | |
Used 55L Industrial Rubber Kneader with Sheeting Line Equipment
| Model | VAT-3/40 | VAT-10/40 | VAT-20/40 | VAT-35/30 | VAT-55/30 | VAT-75/30 | VAT-110/30 | |
| Total volume of mixing chamber (L) | 8 | 25 | 45 | 75 | 125 | 170 | 250 | |
| Working volume of mixing chamber (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | |
| Speed of rotor (front/rear) (r/min) | 40/31 | 40/31 | 40/31 | 30/24.5 | 30/24.5 | 30/24.5 | 30/25 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (kw) | 7.5 | 22 | 37 | 55 | 75 | 110 | 185 | |
| Turning motor power (kw) | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 4 | 4 | |
| Turning angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
Overall dimension (mm) | (L) | 1670 | 2300 | 2360 | 3240 | 3400 | 3860 | 4225 |
| (W) | 950 | 1350 | 1750 | 2080 | 2300 | 2300 | 1980 | |
| (H) | 1880 | 2120 | 2430 | 2650 | 3100 | 3375 | 3180 | |
| Weight (T) | 1.2 | 2.3 | 4.5 | 6.5 | 7.5 | 10 | 11 | |

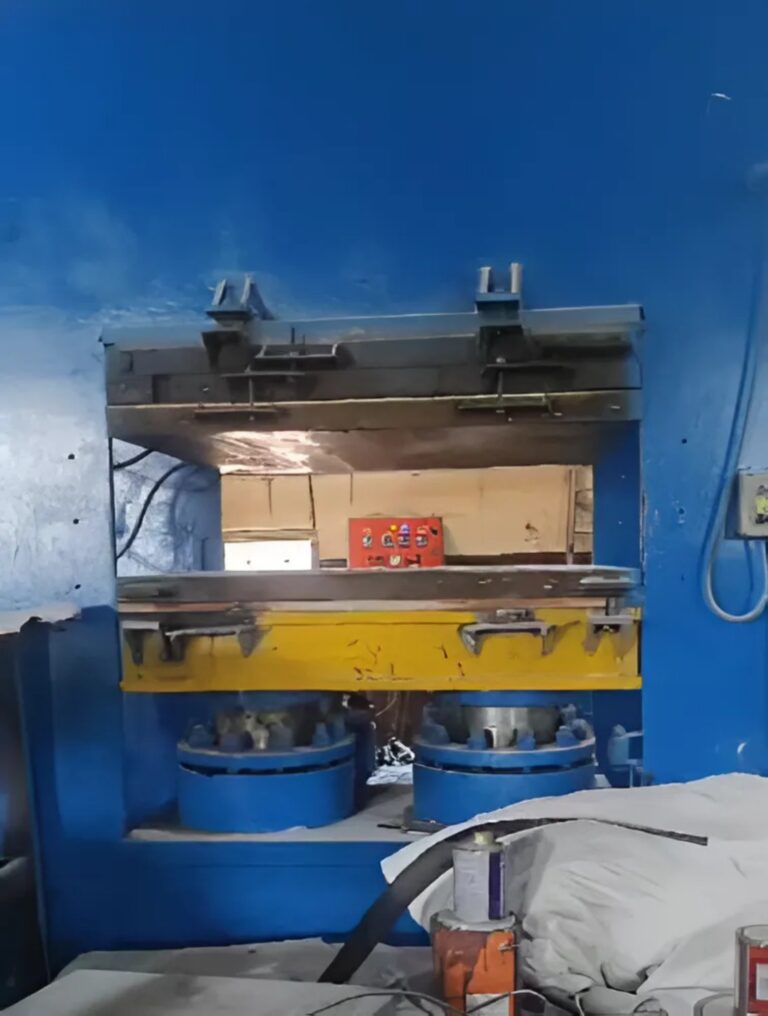

Used 600 Ton Fully Automatic Hydraulic Vulcanizing Press 52 x 52 inches
| MODEL NO. | VAT-75 | VAT-100 | VAT-150 | VAT-200 | VAT-250 | VAT-300 | VAT-350 | VAT-400 | VAT-500 |
| PLATEN SIZE (MM) | 360x360 | 410x410 | 460x460 | 510x510 | 610x610 | 660x660 | 760x760 | 800x850 | 1000x1000 |
| MACHINE TONNAGE | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 500 |
| RAM SIZE DIA (MM) | 220 MM | 250 MM | 300 MM | 350 MM | 400 MM | 450 MM | 500 MM | 550 MM | 600 MM |
| DAYLITE GAP | 500 MM | 500 MM | 500 MM | 400-500 MM | 400-500 MM | 400-500 MM | 400-500 MM | 500-800 MM | 500-900 MM |
| MAN MOTOR | 5 HP | 5 HP | 5 HP | 7.5 HP | 10 HP | 10 HP | 15 HP | 15 HP | 20 HP |
| MAIN RAM STROKE | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM | 500 MM |
