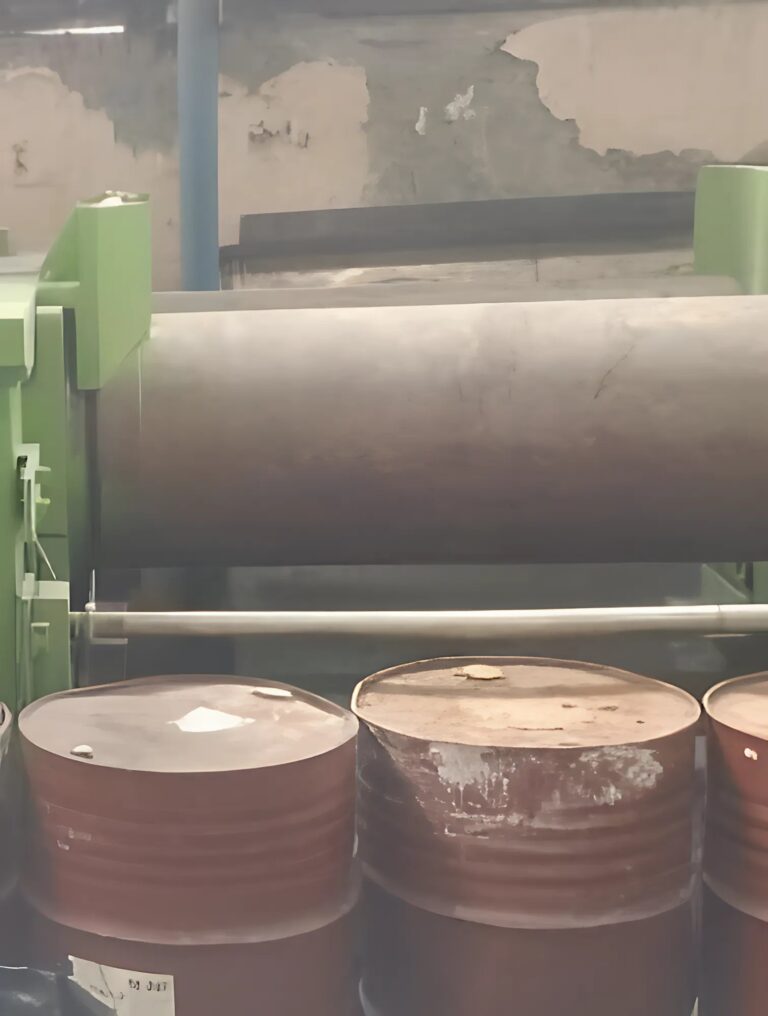

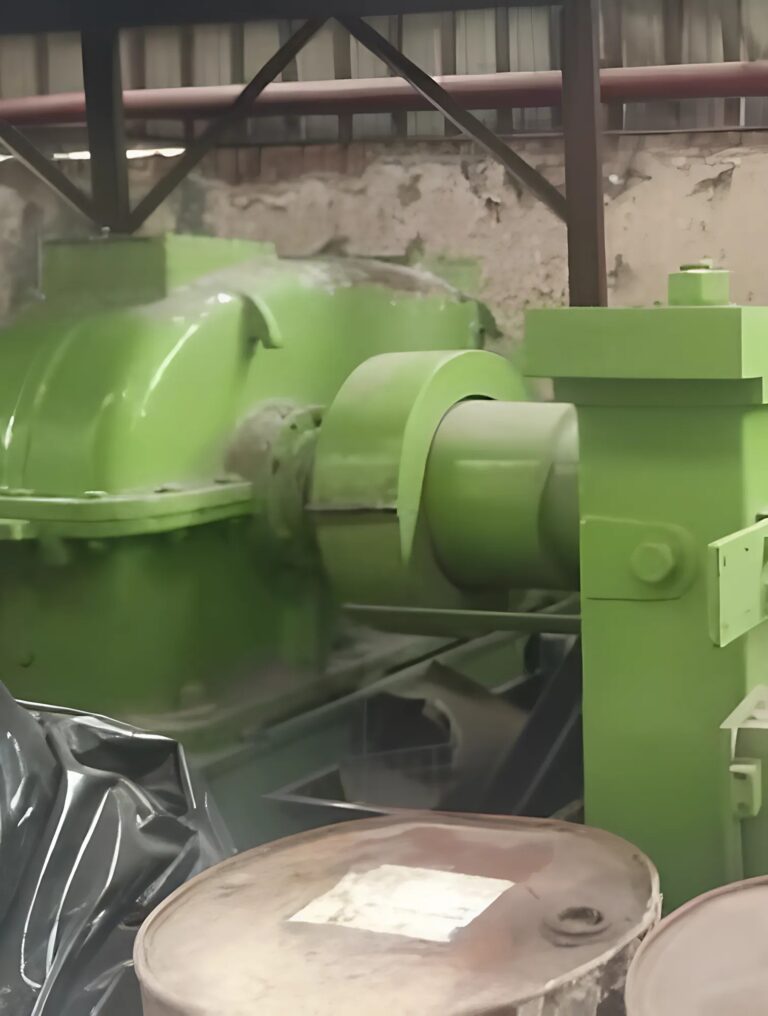

Buy | Sell Used B-type 75 Hp Two Roll Rubber Mixing Mill Machine
| Parameter/Model | VAT-2-250 | VAT-2-360 | VAT-2-400 | VAT-2-450 | VAT-2-560 | VAT-2-610 | VAT-2-810 | |
| Roll Diameter (mm) | 250 | 360 | 400 | 450 | 560 | 610 | 810 | |
| Roll Working Length (mm) | 720 | 1120 | 1200 | 1400 | 1650 | 1730 | 2130 | |
| Ratio of Rubber Speed | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | |
| Roll Speed (m/min) | 1.2-12 | 3-20.2 | 4-23 | 2.5-24.8 | 2-18.7 | 4-36 | 2-20 | |
| Nip Adjust Range (mm) | 0-6 | 0-10 | 0-10 | 0-10 | 0-15 | 0.5-25 | 0.2-25 | |
| Motor Power (kw) | 15 | 37 | 45 | 55 | 75 | 90 | 160 | |
| Size (mm) | Length | 3950 | 5400 | 5600 | 7013 | 7200 | 7987 | 8690 |
| Width | 1110 | 1542 | 1400 | 1595 | 1760 | 1860 | 3139 | |
| Height | 1590 | 1681 | 2450 | 2460 | 2760 | 2988 | 4270 | |
| Weight (KG) | 5000 | 11500 | 12500 | 14000 | 24000 | 30000 | 62000 | |
