55L Industrial Rubber Kneader with Sheeting Line Equipment
| Model | VAT-3/40 | VAT-10/40 | VAT-20/40 | VAT-35/30 | VAT-55/30 | VAT-75/30 | VAT-110/30 | |
| Total volume of mixing chamber (L) | 8 | 25 | 45 | 75 | 125 | 170 | 250 | |
| Working volume of mixing chamber (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | |
| Speed of rotor (front/rear) (r/min) | 40/31 | 40/31 | 40/31 | 30/24.5 | 30/24.5 | 30/24.5 | 30/25 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (kw) | 7.5 | 22 | 37 | 55 | 75 | 110 | 185 | |
| Turning motor power (kw) | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 4 | 4 | |
| Turning angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
Overall dimension (mm) | (L) | 1670 | 2300 | 2360 | 3240 | 3400 | 3860 | 4225 |
| (W) | 950 | 1350 | 1750 | 2080 | 2300 | 2300 | 1980 | |
| (H) | 1880 | 2120 | 2430 | 2650 | 3100 | 3375 | 3180 | |
| Weight (T) | 1.2 | 2.3 | 4.5 | 6.5 | 7.5 | 10 | 11 | |
Affordable Used 250/14D Cold Feed Rubber Extruder
| Model | VAT- 90 X 14D | VAT- 120 X 14D | VAT- 150 X 16D | VAT- 200 X 12D | VAT- 200 X 16D | VAT- 250 X 12D | VAT- 250 X 16D | |
| Screw diameter (mm) | 90 | 120 | 150 | 200 | 200 | 250 | 250 | |
| Screw L/ D ratio | 14/1 | 14/1 | 16/1 | 16/1 | 16/1 | 16/1 | 16/1 | |
| Max.Screw Speed (r/min) | 60 | 50 | 43 | 33 | 33 | 26 | 26 | |
| Feeding hole size (mm) | 120×80 | 160×110 | 200×165 | 260×152 | 260×152 | 340×190 | 340×190 | |
| Row quantity of pin | 8 | 10 | 10 | 8 | 12 | 10 | 12 | |
| Pin quantity of each row | 6 | 6 | 8 | 10 | 10 | 12 | 12 | |
| Motor model (kw) | Z4-180-41 | Z4-225-11 | Z4-250-11 | Z4-280-32 | Z4-315-12 | Z4-315-42 | Z4-355-12 | |
| Main motor Power (kw) | 55 | 110 | 220 | 315 | 355 | 400 | 450 | |
| Hot water circulation section | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| Total power of hot water circulating heating (kw) | 32 | 32 | 42 | 42 | 54 | 48 | 54 | |
| Max.Production capacity (kg/h) | 360 | 800 | 1500 | 2600 | 2600 | 3600 | 3600 | |
| Overall dimension(mm) | (L) | 2300 | 3250 | 3800 | 5030 | 5900 | 5400 | 6077 |
| (W) | 1060 | 1250 | 1590 | 1950 | 1950 | 2400 | 2400 | |
| (H) | 1450 | 1650 | 1700 | 1850 | 1850 | 1920 | 1920 | |
| Weight (t) | 3.2 | 5.7 | 7.2 | 15 | 15 | 18 | 21 | |
Buy | Sell Secondhand Big Size Rubber Mixing Mill 30 x 100-inch
| Model | VAT-250 | VAT-300 | VAT-360 | VAT-400 | VAT-450 | VAT-550 | VAT-610 | VAT-660 | VAT-660(R) | VAT-710 | VAT-760 | VAT-810 | |
| Diameter of rolls(mm) | 250 | 300 | 360 | 400 | 450 | 550 | 610 | 660 | 660 | 710 | 760 | 810 | |
| Working length of rolls(mm) | 620 | 760 | 900 | 1000 | 1200 | 1530 | 1830 | 2130 | 2130 | 2200 | 2540 | 2540 | |
| Linear speed of front roll(m/min) | 15.2 | 14.5 | 16.26 | 18.65 | 23.85 | 27.18 | 28.7 | 32.45 | 28.6 | 31.9 | 33.23 | 31.9 | |
| Roll Friction Ratio | 1:1.10 | 1:1.10 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.25 | 1:1.25 | 1:1.09 | 1:1.24 | 1:1.09 | 1:1.09 | 1:1.09 | |
| Batch Capacity | 10-15 | 14-16 | 15-20 | 25-35 | 30-50 | 50-60 | 90-120 | 165 | 165 | 350 | 350 | 350 | |
| Motor Power | 18.5 | 22 | 30 | 40 | 55 | 110 | 160 | 185 | 250 | 280 | 315 | 355 | |
| Max. Nip(mm) | 8 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
Overall dimension(mm) | L | 3220 | 3570 | 3920 | 4380 | 5050 | 6040 | 6750 | 7040 | 7465 | 7650 | 8560 | 8680 |
| W | 1500 | 1400 | 1650 | 1710 | 1920 | 2100 | 3040 | 3660 | 3660 | 3200 | 2970 | 3575 | |
| H | 1290 | 1350 | 1725 | 1880 | 1870 | 1625 | 1743 | 2080 | 2080 | 2860 | 1970 | 3020 | |
| Weight(ton) | 3.8 | 4.5 | 6 | 8 | 13 | 22 | 35 | 45 | 45 | 50 | 58 | 68 | |

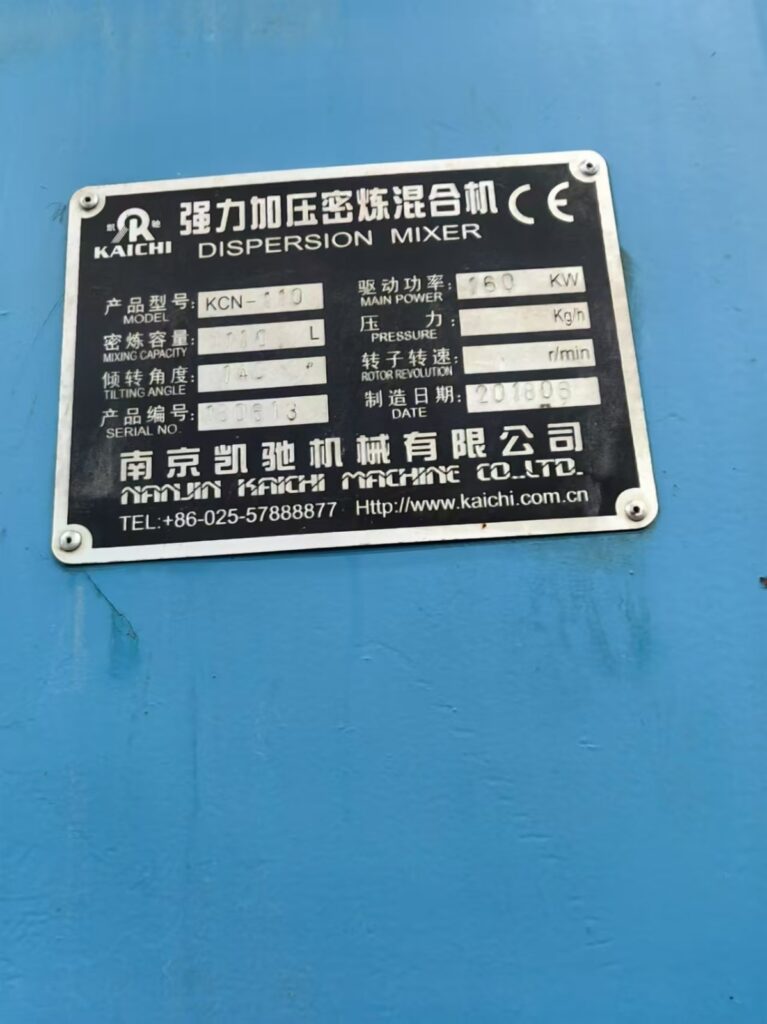

Buy | Sell Secondhand Rubber Dispersion Kneader 110 Ltr
| Model | VAT-3/40 | VAT-10/40 | VAT-20/40 | VAT-35/30 | VAT-55/30 | VAT-75/30 | VAT-110/30 | |
| Total volume of mixing chamber (L) | 8 | 25 | 45 | 75 | 125 | 170 | 250 | |
| Working volume of mixing chamber (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | |
| Speed of rotor (front/rear) (r/min) | 40/31 | 40/31 | 40/31 | 30/24.5 | 30/24.5 | 30/24.5 | 30/25 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (kw) | 7.5 | 22 | 37 | 55 | 75 | 110 | 185 | |
| Turning motor power (kw) | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 4 | 4 | |
| Turning angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
Overall dimension (mm) | (L) | 1670 | 2300 | 2360 | 3240 | 3400 | 3860 | 4225 |
| (W) | 950 | 1350 | 1750 | 2080 | 2300 | 2300 | 1980 | |
| (H) | 1880 | 2120 | 2430 | 2650 | 3100 | 3375 | 3180 | |
| Weight (T) | 1.2 | 2.3 | 4.5 | 6.5 | 7.5 | 10 | 11 | |

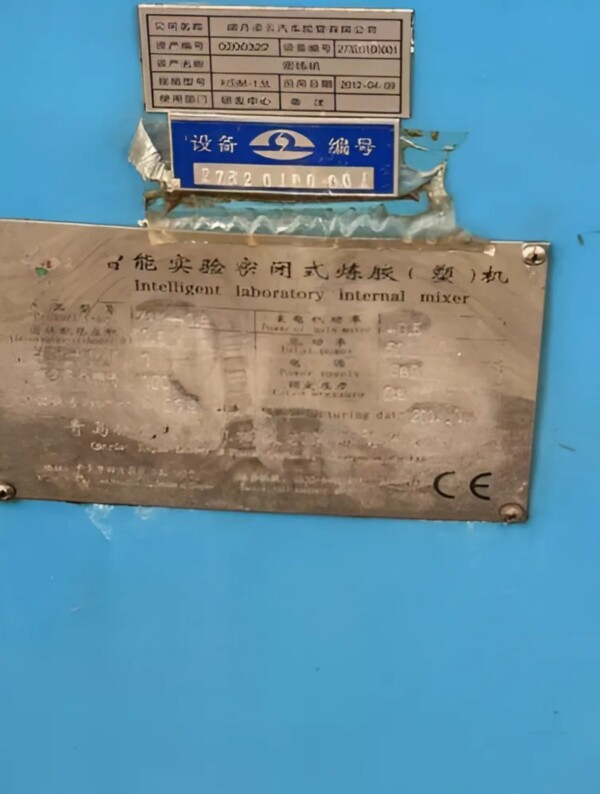

Buy Used 1.5L Banbury Rubber Mixer – Tested, Ready to Use
| Model | VAT-45E | VAT-90E | VAT-135E | VAT160E | VAT-190E | |
| Total volume of mixing chamber (L) | 45 | 90 | 135 | 160 | 190 | |
| Working volume of mixing chamber (L) | 30 | 56 | 90 | 104 | 125 | |
| Speed of rear rotor (r/min) | 6-60 | 5-50 | 6-60 | 5-50 | 6-60 | |
| Rotor speed ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (kw) | 280 | 450 | 720 | 750 | 1100 | |
| Overall dimension (mm) | (L) | 6200 | 7400 | 8200 | 8600 | 9000 |
| (W) | 2500 | 2880 | 2950 | 3000 | 4000 | |
| (H) | 3750 | 4700 | 5375 | 6000 | 6220 | |
| Weight (T) | 15 | 23 | 29 | 39 | 45 | |
