Compression Moldingrubber machine dealer India

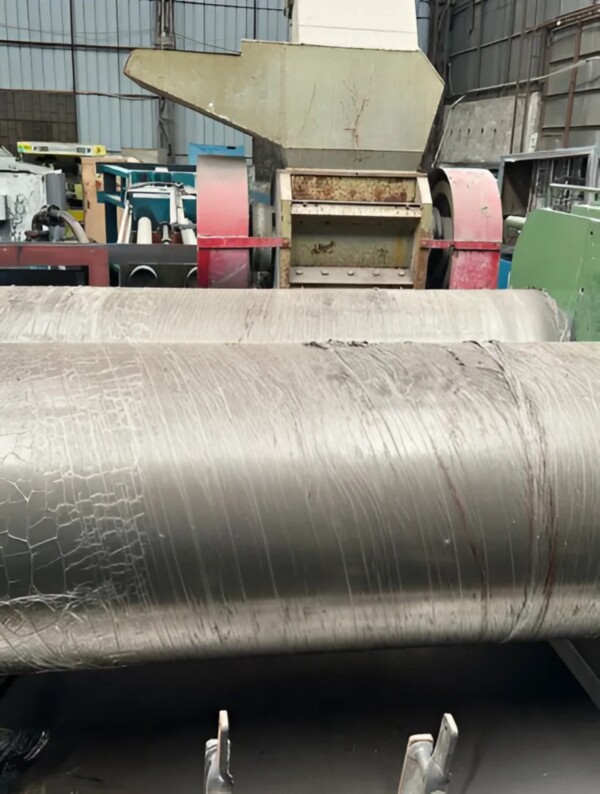

Pre Owned Rubber Mixing Mill 8 Inch x 18 Inch Available Now
| Model | VAT-250 | VAT-300 | VAT-360 | VAT-400 | VAT-450 | VAT-550 | VAT-610 | VAT-660 | VAT-660(R) | VAT-710 | VAT-760 | VAT-810 | |
| Diameter of rolls(mm) | 250 | 300 | 360 | 400 | 450 | 550 | 610 | 660 | 660 | 710 | 760 | 810 | |
| Working length of rolls(mm) | 620 | 760 | 900 | 1000 | 1200 | 1530 | 1830 | 2130 | 2130 | 2200 | 2540 | 2540 | |
| Linear speed of front roll(m/min) | 15.2 | 14.5 | 16.26 | 18.65 | 23.85 | 27.18 | 28.7 | 32.45 | 28.6 | 31.9 | 33.23 | 31.9 | |
| Roll Friction Ratio | 1:1.10 | 1:1.10 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.25 | 1:1.25 | 1:1.09 | 1:1.24 | 1:1.09 | 1:1.09 | 1:1.09 | |
| Batch Capacity | 10-15 | 14-16 | 15-20 | 25-35 | 30-50 | 50-60 | 90-120 | 165 | 165 | 350 | 350 | 350 | |
| Motor Power | 18.5 | 22 | 30 | 40 | 55 | 110 | 160 | 185 | 250 | 280 | 315 | 355 | |
| Max. Nip(mm) | 8 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
Overall dimension(mm) | L | 3220 | 3570 | 3920 | 4380 | 5050 | 6040 | 6750 | 7040 | 7465 | 7650 | 8560 | 8680 |
| W | 1500 | 1400 | 1650 | 1710 | 1920 | 2100 | 3040 | 3660 | 3660 | 3200 | 2970 | 3575 | |
| H | 1290 | 1350 | 1725 | 1880 | 1870 | 1625 | 1743 | 2080 | 2080 | 2860 | 1970 | 3020 | |
| Weight(ton) | 3.8 | 4.5 | 6 | 8 | 13 | 22 | 35 | 45 | 45 | 50 | 58 | 68 | |
Previously Owned Rubber Calender Machine for Sale – 3 Roll 450×1300 Model
| Parameter/model | VAT-3-250 | VAT-3-360 | VAT-3-400 | VAT-3-450 | VAT-3-560 | VAT-3-610 | VAT-3-810 | ||
| Roll diameter (mm) | 250 | 360 | 400 | 450 | 560 | 610 | 810 | ||
| Roll working length (mm) | 720 | 1120 | 1200 | 1400 | 1650 | 1730 | 2130 | ||
| Ratio of rubber speed | 1:1 | 1:1 | 1:1 | 1:1.5:1 | 1:1.5:1 | 1:1.4:1 | 1:01:01 | ||
| Roll speed (m/min) | 2-15.9 | 3-20 | 3-26 | 2.6-26.2 | 3-30 | 5.4-54 | 3-30 | ||
| Nip adjust range (mm) | 0-6 | 0-10 | 0-10 | 0-10 | 0-15 | 0.5-25 | 0.2-25 | ||
| Motor power (KW) | 22 | 45 | 55 | 75 | 110 | 160 | 132x3 | ||
| Size (mm) | Length | 3950 | 5400 | 5600 | 7013 | 7200 | 7987 | 8690 | |
| Width | 1110 | 1542 | 1400 | 1595 | 1760 | 1860 | 3139 | ||
| Height | 1810 | 2440 | 2520 | 2900 | 3800 | 3950 | 5050 | ||
| Weight (KG) | 5500 | 14000 | 18000 | 21000 | 35000 | 42000 | 110000 | ||
Refurbished 22×60 Rubber Mixing Mill | Taiwan Quality Assured
| Model | VAT-250 | VAT-300 | VAT-360 | VAT-400 | VAT-450 | VAT-550 | VAT-610 | VAT-660 | VAT-660(R) | VAT-710 | VAT-760 | VAT-810 | |
| Diameter of rolls(mm) | 250 | 300 | 360 | 400 | 450 | 550 | 610 | 660 | 660 | 710 | 760 | 810 | |
| Working length of rolls(mm) | 620 | 760 | 900 | 1000 | 1200 | 1530 | 1830 | 2130 | 2130 | 2200 | 2540 | 2540 | |
| Linear speed of front roll(m/min) | 15.2 | 14.5 | 16.26 | 18.65 | 23.85 | 27.18 | 28.7 | 32.45 | 28.6 | 31.9 | 33.23 | 31.9 | |
| Roll Friction Ratio | 1:1.10 | 1:1.10 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.25 | 1:1.25 | 1:1.09 | 1:1.24 | 1:1.09 | 1:1.09 | 1:1.09 | |
| Batch Capacity | 10-15 | 14-16 | 15-20 | 25-35 | 30-50 | 50-60 | 90-120 | 165 | 165 | 350 | 350 | 350 | |
| Motor Power | 18.5 | 22 | 30 | 40 | 55 | 110 | 160 | 185 | 250 | 280 | 315 | 355 | |
| Max. Nip(mm) | 8 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
Overall dimension(mm) | L | 3220 | 3570 | 3920 | 4380 | 5050 | 6040 | 6750 | 7040 | 7465 | 7650 | 8560 | 8680 |
| W | 1500 | 1400 | 1650 | 1710 | 1920 | 2100 | 3040 | 3660 | 3660 | 3200 | 2970 | 3575 | |
| H | 1290 | 1350 | 1725 | 1880 | 1870 | 1625 | 1743 | 2080 | 2080 | 2860 | 1970 | 3020 | |
| Weight(ton) | 3.8 | 4.5 | 6 | 8 | 13 | 22 | 35 | 45 | 45 | 50 | 58 | 68 | |
