Compression Molding
High-Efficiency Rubber Vulcanise Machine for Sheet Curing
Technical Highlights:
Roller Size: 700 mm diameter x 1700 mm length
Steel Belt Width: 1550 mm
Application: Continuous vulcanization of rubber sheets
Condition: Used / Good operational condition
Usage Areas: Conveyor belts, flooring sheets, printing blankets, rubber liners, and gaskets

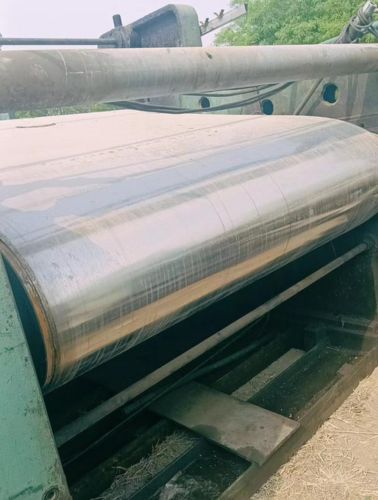

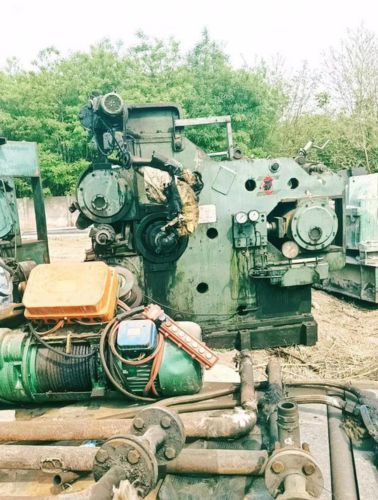

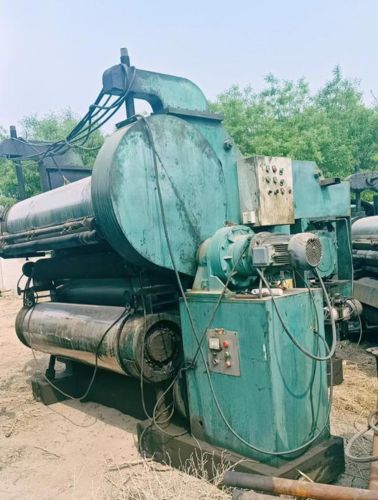

Used Rubber Vulcanise Rotocure 700×1700 with 1550 Steel Belt
Product Description:
This rubber vulcanise rotocure machine is designed for continuous curing of rubber sheets, mats, conveyor belts, and industrial liners. With a roller size of 700 mm x 1700 mm and a 1550 mm steel belt, it offers consistent heat and pressure application throughout the vulcanization process. Ideal for manufacturers seeking high efficiency and uniform sheet production, this machine ensures excellent surface finish and dimensional accuracy across a wide range of rubber compounds.
The rotocure is a preferred choice for manufacturers looking for high-efficiency, low-maintenance vulcanising equipment capable of producing consistent sheet thickness and quality. The rotating drum system allows continuous production, reducing cycle time and operational costs.
Key Features:
High precision heating and pressure control
Suitable for EPDM, NR, NBR, and other rubber compounds
Consistent surface finish and thickness control
Heavy-duty steel belt ensures tension and smooth conveyance
Reduced labor and faster production turnaround
Ideal For:
Rubber sheet and lining manufacturers
Conveyor belt and mat producers
Industrial rubber product factories
Rubber flooring and automotive gasket suppliers
Looking for a reliable rubber sheet vulcanizing machine? This used rotocure 700×1700 mm with a 1550 steel belt is available at a competitive price. Contact us for more photos, specifications, and inspection details.
| Model | VAT-710X700 | VAT-710X1450 | VAT-1000X1600 | VAT-1250X1800 | VAT-1500X2400 | VAT-2000X3200 | VAT-2500X4200 | |
| Drum diameter (mm) | 710 | 710 | 1000 | 1250 | 1500 | 2000 | 2500 | |
| Max. Product width (mm) | 500 | 1150 | 1300 | 1500 | 2100 | 2900 | 3800 | |
| Product thickness (mm) | 0.5-5 | 0.5-5 | 1-8 | 1-8 | 1-10 | 1-10 | 1-10 | |
| Total pulling force of steel belt (kn) | 300 | 380 | 900 | 1100 | 1500 | 3300 | 5000 | |
| Drum liner speed (m/min) | 0.2-2 | 0.2-2 | 0.2-2 | 0.2-2 | 0.2-3 | 0.2-3 | 0.2-3 | |
| Curing pressure (mpa) | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | |
| Steam pressure (mpa) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
| Main motor power (kw) | 2.2 | 3 | 3 | 3 | 5.5 | 7.5 | 11 | |
| Winding power (kw) | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | |
Overall dimension (mm) | (L) | 2630 | 2630 | 3300 | 5790 | 6300 | 7200 | 8800 |
| (W) | 2440 | 3190 | 3300 | 4870 | 4900 | 7100 | 8400 | |
| (H) | 2730 | 2730 | 3500 | 4970 | 5100 | 5800 | 6200 | |
| Weight (t) | 15 | 20 | 25 | 28 | 32 | 100 | 200 | |
