Compression Moldingvatsn tecnic
270 Ltr High-Speed Banbury Mixer for Rubber Mixing
| Model | VAT(M) - 50/ 40 | VAT(M) - 75/ 40 | VAT(M) - 110/ 40 | VAT(M) - 140/ 40 | VAT(M) - 160/ 40 | VAT(M) - 190/ 40 | VAT(M) - 250/ 40 | VAT(M) - 270/ 40 | |
| Total volume of mixing chamber (L) | 50 | 75 | 110 | 140 | 160 | 190 | 250 | 270 | |
| Working volume of mixing chamber (L) | 35 | 50 | 80 | 100 | 120 | 140 | 190 | 205 | |
| Speed of rear rotor (r/min) | 40 | 40(6-60) | 40(4-40) | 40 | 40(6-60) | 40(6-60) | 20/40(4-40,6-60) | 20/40(4-40,6-60) | |
| Rotor speed ratio | 1.167 | 1.185 | 1.156 | 1.15 | 1:1.143/1:1 | 1:1.143/1:1 | 1.2:1/1:1 | 1:1.7/1:1 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (KW) | 75 | 160/315 | 220/400 | 315 | 355/500/750 | 800/1100 | 1120/1250/1500 | 1100/1250/1500 | |
|
Overall dimension (mm) |
(L) | 5095 | 5600 | 5690 | 6525 | 6760 | 7000 | 7500 | 8690 |
| (W) | 1950 | 2300 | 2745 | 2800 | 2900 | 3330 | 4305 | 4325 | |
| (H) | 3180 | 4600 | 4670 | 5280 | 5280 | 6200 | 5768 | 6140 | |
| Weight (T) | 11 | 16..8 | 28 | 33 | 38 | 46 | 48.5 | 51 | |
Buy | Sell Used 12 X 30 Mixing Mill Barring Uni Drive Press
| Model | VAT-250 | VAT-300 | VAT-360 | VAT-400 | VAT-450 | VAT-550 | VAT-560 | VAT-610 | VAT-660 | VAT-660(R) | VAT-710 | VAT-760 | VAT-810 | |
| Diameter of rolls(mm) | 250 | 300 | 360 | 400 | 450 | 550 | 560 | 610 | 660 | 660 | 710 | 760 | 810 | |
| Working length of rolls(mm) | 620 | 760 | 900 | 1000 | 1200 | 1530 | 1530 | 1830 | 2130 | 2130 | 2200 | 2540 | 2540 | |
| Linear speed of front roll(m/min) | 15.2 | 14.5 | 16.26 | 18.65 | 23.85 | 27.18 | 27.61 | 28.7 | 32.45 | 28.6 | 31.9 | 33.23 | 31.9 | |
| Roll Friction Ratio | 1:1.10 | 1:1.10 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.25 | 1:1.25 | 1:1.25 | 1:1.09 | 1:1.24 | 1:1.09 | 1:1.09 | 1:1.09 | |
| Batch Capacity | 10-15 | 14-16 | 15-20 | 25-35 | 30-50 | 50-60 | 50-60 | 90-120 | 165 | 165 | 350 | 350 | 350 | |
| Motor Power | 18.5 | 22 | 30 | 40 | 55 | 110 | 110 | 160 | 185 | 250 | 280 | 315 | 355 | |
| Max. Nip(mm) | 8 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
|
Overall dimension(mm) |
L | 3220 | 3570 | 3920 | 4380 | 5050 | 6040 | 6040 | 6750 | 7040 | 7465 | 7650 | 8560 | 8680 |
| W | 1500 | 1400 | 1650 | 1710 | 1920 | 2100 | 2100 | 3040 | 3660 | 3660 | 3200 | 2970 | 3575 | |
| H | 1290 | 1350 | 1725 | 1880 | 1870 | 1625 | 1625 | 1743 | 2080 | 2080 | 2860 | 1970 | 3020 | |
| Weight(ton) | 3.8 | 4.5 | 6 | 8 | 13 | 22 | 22 | 35 | 45 | 45 | 50 | 58 | 68 | |
Buy | Sell Used 24 X 68 Inch Rubber Sheet Production Calendaring Line
| MODEL | VAT-1 | VAT-2 | VAT-3 | VAT-4 | VAT-5 | VAT-6 | VAT-7 | VAT-8 | VAT-9 | |
| Roll Diameter | Inches | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 |
| m.m. | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 510 | 550 | |
| Face Width | Inches | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 |
| m.m. | 455 | 610 | 760 | 915 | 1065 | 1220 | 1370 | 1525 | 1675 | |
| Motor | H.P | 7.5 | 10 | 15 | 30 | 40 | 60 | 100 | 125 | 150 |
| R.P.M. | 980 | 980 | 980 | 980 | 980 | 980 | 980 | 980 | 980 |

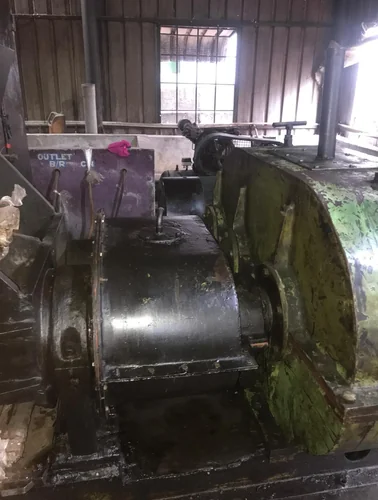

Buy | Sell Used 35L Rubber Compound Dispersion Kneader
| Model | VAT-3/40 | VAT-10/40 | VAT-20/40 | VAT-35/30 | VAT-55/30 | VAT-75/30 | VAT-110/30 | |
| Total volume of mixing chamber (L) | 8 | 25 | 45 | 75 | 125 | 170 | 250 | |
| Working volume of mixing chamber (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | |
| Speed of rotor (front/rear) (r/min) | 40/31 | 40/31 | 40/31 | 30/24.5 | 30/24.5 | 30/24.5 | 30/25 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (kw) | 7.5 | 22 | 37 | 55 | 75 | 110 | 185 | |
| Turning motor power (kw) | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 4 | 4 | |
| Turning angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
|
Overall dimension (mm) |
(L) | 1670 | 2300 | 2360 | 3240 | 3400 | 3860 | 4225 |
| (W) | 950 | 1350 | 1750 | 2080 | 2300 | 2300 | 1980 | |
| (H) | 1880 | 2120 | 2430 | 2650 | 3100 | 3375 | 3180 | |
| Weight (T) | 1.2 | 2.3 | 4.5 | 6.5 | 7.5 | 10 | 11 | |
Buy | Sell Used 610 X 1730 Three Roll Rubber Calendar Machine
| Parameter/model | VAT-3-250 | VAT-3-360 | VAT-3-400 | VAT-3-450 | VAT-3-560 | VAT-3-610 | VAT-3-810 | |
| Roll diameter (mm) | 250 | 360 | 400 | 450 | 560 | 610 | 810 | |
| Roll working length (mm) | 720 | 1120 | 1200 | 1400 | 1650 | 1730 | 2130 | |
| Ratio of rubber speed | 1:1 | 1:1 | 1:1 | 1:1.5:1 | 1:1.5:1 | 1:1.4:1 | 1:01:01 | |
| Roll speed (m/min) | 2-15.9 | 3-20 | 3-26 | 2.6-26.2 | 3-30 | 5.4-54 | 3-30 | |
| Nip adjust range (mm) | 0-6 | 0-10 | 0-10 | 0-10 | 0-15 | 0.5-25 | 0.2-25 | |
| Motor power (KW) | 22 | 45 | 55 | 75 | 110 | 160 | 132x3 | |
| Size (mm) | Length | 3950 | 5400 | 5600 | 7013 | 7200 | 7987 | 8690 |
| Width | 1110 | 1542 | 1400 | 1595 | 1760 | 1860 | 3139 | |
| Height | 1810 | 2440 | 2520 | 2900 | 3800 | 3950 | 5050 | |
| Weight (KG) | 5500 | 14000 | 18000 | 21000 | 35000 | 42000 | 110000 | |
Buy | Sell Used Compound Pneumatic Sealing 75kw 55L Rubber Mixing Machine
| Model | VAT-3/40 | VAT-10/40 | VAT-20/40 | VAT-35/30 | VAT-55/30 | VAT-75/30 | VAT-110/30 | |
| Total volume of mixing chamber (L) | 8 | 25 | 45 | 75 | 125 | 170 | 250 | |
| Working volume of mixing chamber (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | |
| Speed of rotor (front/rear) (r/min) | 40/31 | 40/31 | 40/31 | 30/24.5 | 30/24.5 | 30/24.5 | 30/25 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (kw) | 7.5 | 22 | 37 | 55 | 75 | 110 | 185 | |
| Turning motor power (kw) | 0.55 | 1.1 | 1.5 | 1.5 | 2.2 | 4 | 4 | |
| Turning angle (°) | 140 | 140 | 140 | 140 | 140 | 140 | 140 | |
|
Overall dimension (mm) |
(L) | 1670 | 2300 | 2360 | 3240 | 3400 | 3860 | 4225 |
| (W) | 950 | 1350 | 1750 | 2080 | 2300 | 2300 | 1980 | |
| (H) | 1880 | 2120 | 2430 | 2650 | 3100 | 3375 | 3180 | |
| Weight (T) | 1.2 | 2.3 | 4.5 | 6.5 | 7.5 | 10 | 11 | |
Buy | Sell Used Rubber Cold Feed Extruder 120 Mm
| Model | VAT- 90 X 14D | VAT- 120 X 14D | VAT- 150 X 16D | VAT- 200 X 12D | VAT- 200 X 16D | VAT- 250 X 12D | VAT- 250 X 16D | |
| Screw diameter (mm) | 90 | 120 | 150 | 200 | 200 | 250 | 250 | |
| Screw L/ D ratio | 14/1 | 14/1 | 16/1 | 16/1 | 16/1 | 16/1 | 16/1 | |
| Max.Screw Speed (r/min) | 60 | 50 | 43 | 33 | 33 | 26 | 26 | |
| Feeding hole size (mm) | 120×80 | 160×110 | 200×165 | 260×152 | 260×152 | 340×190 | 340×190 | |
| Row quantity of pin | 8 | 10 | 10 | 8 | 12 | 10 | 12 | |
| Pin quantity of each row | 6 | 6 | 8 | 10 | 10 | 12 | 12 | |
| Motor model (kw) | Z4-180-41 | Z4-225-11 | Z4-250-11 | Z4-280-32 | Z4-315-12 | Z4-315-42 | Z4-355-12 | |
| Main motor Power (kW) | 55 | 110 | 220 | 315 | 355 | 400 | 450 | |
| Hot water circulation section | 3 | 3 | 4 | 4 | 4 | 4 | 4 | |
| Total power of hot water circulating heating (kw) | 32 | 32 | 42 | 42 | 54 | 48 | 54 | |
| Max.Production capacity (kg/h) | 360 | 800 | 1500 | 2600 | 2600 | 3600 | 3600 | |
|
Overall dimension(mm) |
(L) | 2300 | 3250 | 3800 | 5030 | 5900 | 5400 | 6077 |
| (W) | 1060 | 1250 | 1590 | 1950 | 1950 | 2400 | 2400 | |
| (H) | 1450 | 1650 | 1700 | 1850 | 1850 | 1920 | 1920 | |
| Weight (t) | 3.2 | 5.7 | 7.2 | 15 | 15 | 18 | 21 | |
Buy | Sell Pre-Owned 1850 Three Roll Rubber Calendar
| Parameter/model | VAT-3-250 | VAT-3-360 | VAT-3-400 | VAT-3-450 | VAT-3-560 | VAT-3-610 | VAT-3-810 | |
| Roll diameter (mm) | 250 | 360 | 400 | 450 | 560 | 610 | 810 | |
| Roll working length (mm) | 720 | 1120 | 1200 | 1400 | 1650 | 1730 | 2130 | |
| Ratio of rubber speed | 1:1 | 1:1 | 1:1 | 1:1.5:1 | 1:1.5:1 | 1:1.4:1 | 1:01:01 | |
| Roll speed (m/min) | 2-15.9 | 3-20 | 3-26 | 2.6-26.2 | 3-30 | 5.4-54 | 3-30 | |
| Nip adjust range (mm) | 0-6 | 0-10 | 0-10 | 0-10 | 0-15 | 0.5-25 | 0.2-25 | |
| Motor power (KW) | 22 | 45 | 55 | 75 | 110 | 160 | 132x3 | |
| Size (mm) | Length | 3950 | 5400 | 5600 | 7013 | 7200 | 7987 | 8690 |
| Width | 1110 | 1542 | 1400 | 1595 | 1760 | 1860 | 3139 | |
| Height | 1810 | 2440 | 2520 | 2900 | 3800 | 3950 | 5050 | |
| Weight (KG) | 5500 | 14000 | 18000 | 21000 | 35000 | 42000 | 110000 | |
Buy | Sell Pre-owned Banbury & Rubber Mixer From Kobelco
| Model | VAT(M) - 50/ 40 | VAT(M) - 75/ 40 | VAT(M) - 110/ 40 | VAT(M) - 140/ 40 | VAT(M) - 160/ 40 | VAT(M) - 190/ 40 | VAT(M) - 250/ 40 | VAT(M) - 270/ 40 | |
| Total volume of mixing chamber (L) | 50 | 75 | 110 | 140 | 160 | 190 | 250 | 270 | |
| Working volume of mixing chamber (L) | 35 | 50 | 80 | 100 | 120 | 140 | 190 | 205 | |
| Speed of rear rotor (r/min) | 40 | 40(6-60) | 40(4-40) | 40 | 40(6-60) | 40(6-60) | 20/40(4-40,6-60) | 20/40(4-40,6-60) | |
| Rotor speed ratio | 1.167 | 1.185 | 1.156 | 1.15 | 1:1.143/1:1 | 1:1.143/1:1 | 1.2:1/1:1 | 1:1.7/1:1 | |
| Compressed air pressure (mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling water pressure (mpa) | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | |
| Main motor power (KW) | 75 | 160/315 | 220/400 | 315 | 355/500/750 | 800/1100 | 1120/1250/1500 | 1100/1250/1500 | |
|
Overall dimension (mm) |
(L) | 5095 | 5600 | 5690 | 6525 | 6760 | 7000 | 7500 | 8690 |
| (W) | 1950 | 2300 | 2745 | 2800 | 2900 | 3330 | 4305 | 4325 | |
| (H) | 3180 | 4600 | 4670 | 5280 | 5280 | 6200 | 5768 | 6140 | |
| Weight (T) | 11 | 16..8 | 28 | 33 | 38 | 46 | 48.5 | 51 | |
Buy | Sell Pre-Owned Rubber Molding Hydraulic press
<col width="100" /> width="100" />
t="1" data-sheets-baot="1"><colgroup> width="177" />
&lt;table class="yoast-text-mark" dir="ltr" border="1" cellspacing="0" cellpadding="0" data-sheets-roo="">
MODEL NO.VAT-75VAT-100VAT-150VAT-200VAT-250VAT-300VAT-350VAT-400VAT-500PLATEN SIZE (MM)360x360410x410460x460510x510610x610660x660760x760800x8501000x1000MACHINE TONNAGE75100150200250300350400500RAM SIZE DIA (MM)220 MM250 MM300 MM350 MM400 MM450 MM500 MM550 MM600 MMDAYLITE GAP500 MM500 MM500 MM400-500 MM400-500 MM400-500 MM400-500 MM500-800 MM500-900 MMMAN MOTOR5 HP5 HP5 HP7.5 HP10 HP10 HP15 HP15 HP20 HPMAIN RAM STROKE500 MM500 MM500 MM500 MM500 MM500 MM500 MM500 MM500 MM
